Countersunk NdFeB Pot Magnet
1.Dimensions: Dia from 12mm to 120mm
2.Materials: NdFeB,Grade N35 to N52 (M,H,SH,UH,EH AH)
3.Plating/Coating: Zinc,Nickel,Epoxy or Color paint.
4.Magnetization direction: Axial magnetized
5.Max operating temp.: 80 to 220 degrees celsius
They are ideal for using in fixing applications such as doors,panels,marketing displays,light fixtures and fittings.

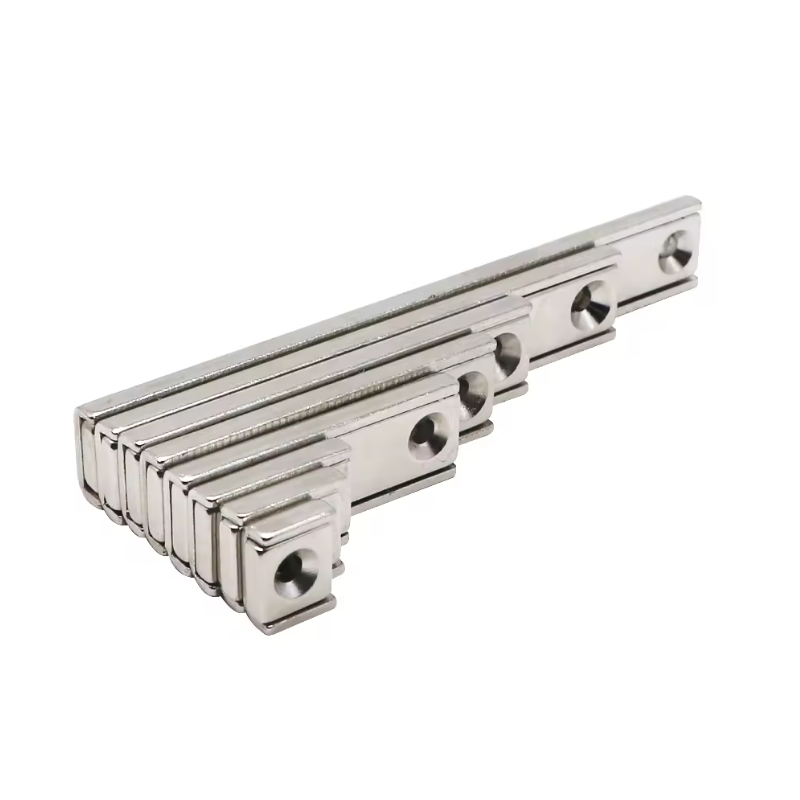

These rectangular pot magnet,can for M3,M4,M5,M6,M8 M10 or customized.They need to fastened with an male thread.
As the metal pot to change the magnetic flux to make the force become strong,so even with a small size,but the force is very strong.
|
|
2.Technical informations
Dimensions: Standard size or custom
Grade of magnet: N35/N42/N48........
Processing technology of steel cup: Stamping machining
Surface treatment: Znic,Nikcel
Tolerance: +/-0.05mm
Vertically force: From 5 Kg to 40 Kg

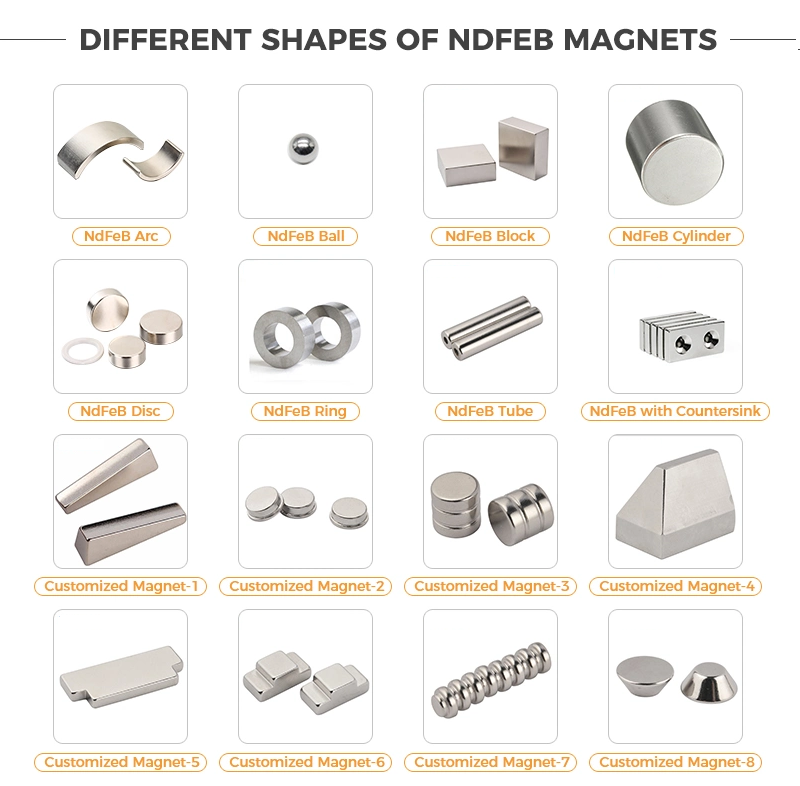

3.The main types of pot neodymium magnets

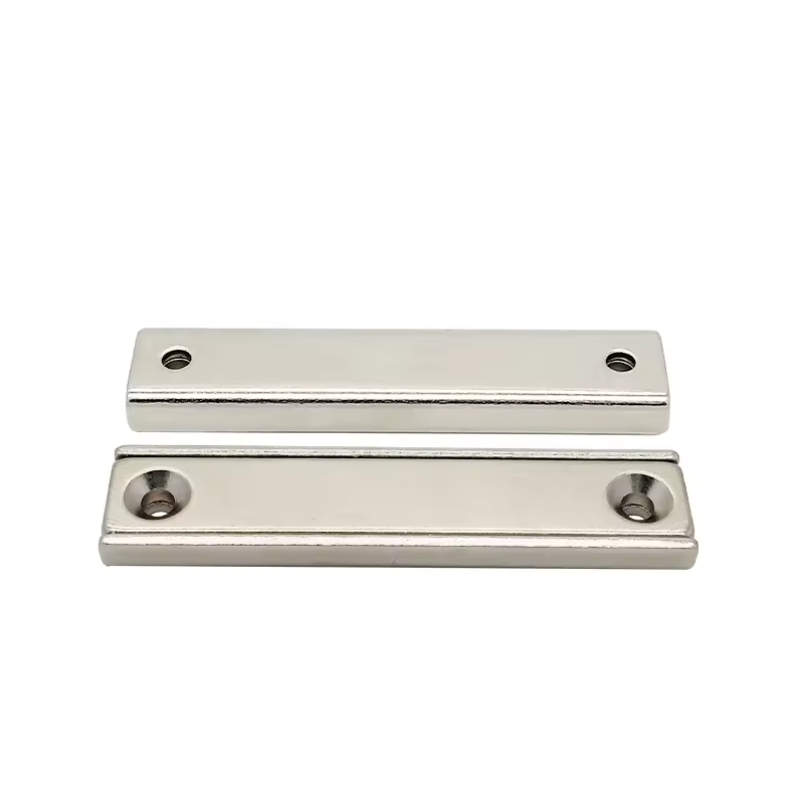

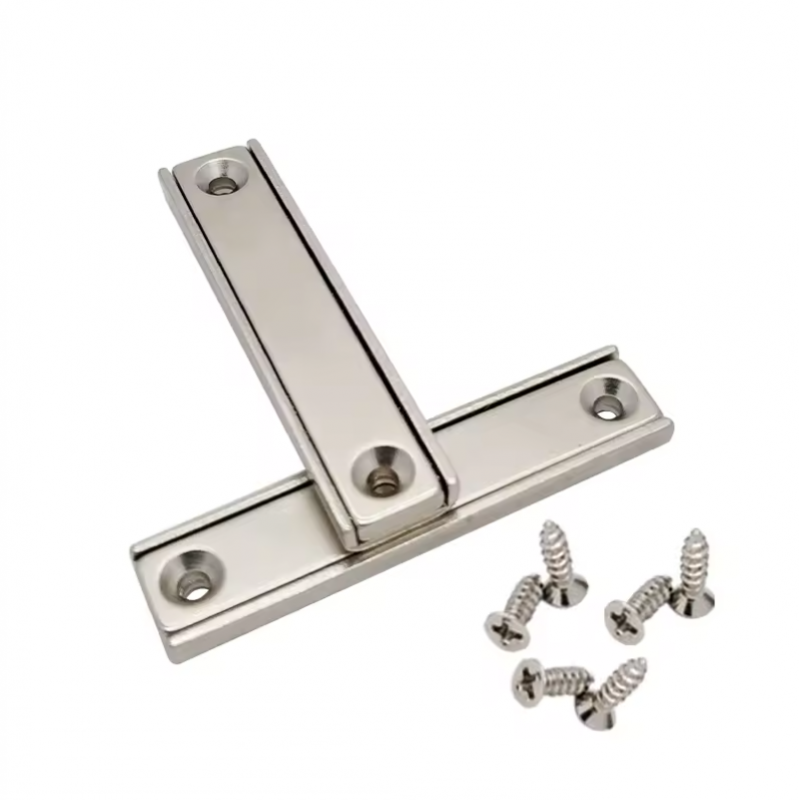

7. Block shap with one or two countersunk hole
Depending on the requirements of your installation,you can choose the appropriate type.

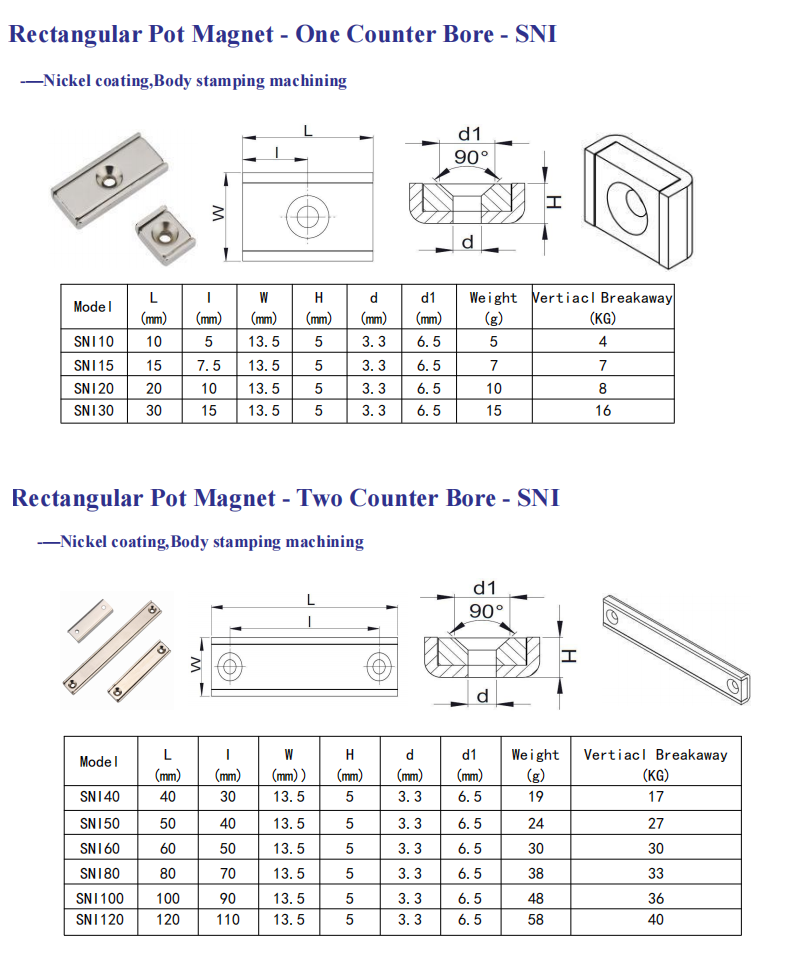

Here is the catalog of pot neodymium magnet,or you can download it by clicking the "Download" menu in the upper right corner.
How to get a best quote?
After confirming the above four details,or if you have any futher questions,we would love to receive your email or messages.We will calcualte the price asap according to your order/sample quantity,and respond to your concerns.
