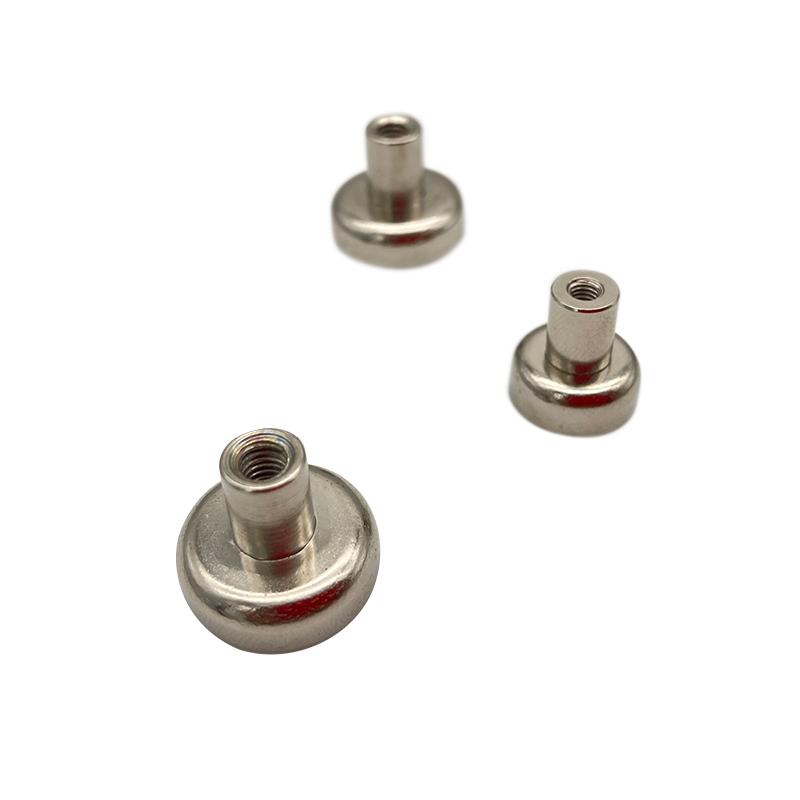

Screwed Bush NdFeB Pot Magnet
1.Dimensions: Dia from 10mm to 120mm
2.Materials: NdFeB,Grade N35 to N52 (M,H,SH,UH,EH AH)
3.Plating/Coating: Zinc,Nickel,Epoxy or Color paint.
4.Magnetization direction: Axial magnetized
5.Max operating temp.: 80 to 220 degrees celsius
They widely use for trade fair,any shop build ,at home or other purpose.No matter use in private household or commercial or hobby applications are all suitable.
These pot magnets have screw bush hole,can for M3,M4,M5,M6,M8 M10 or customized.They need to fastened with an male thread or hook.As the metal pot to change the magnetic flux to make the force become strong,so even with a small size,but the force is very strong.They are suitable for strong and quickly removable fasten no need drilling.

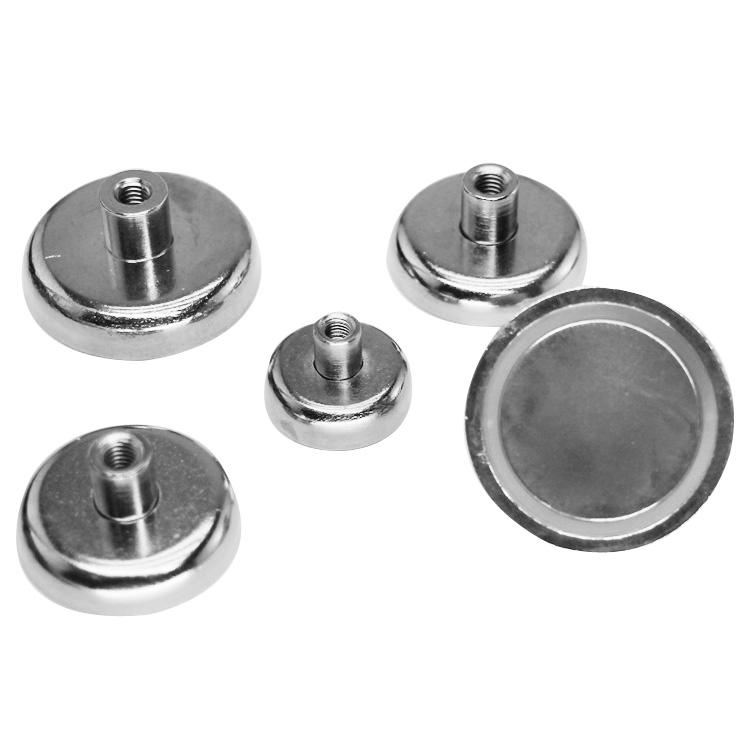

1.Screwed bush neodymium pot magnet
Model
D(mm)
D1(mm)
M
H(mm)
h(mm)
Weight(g)
Pull Force(KG)
KM-SND10
10
6
M3
12.5
5
4
2
KM-SND12
12
6
M3
12.5
5
5
4
KM-SND16
16
6.5
M4
12.6
5
9
8
KM-SND20
20
6.5
M4
14
7
17
12
KM-SND25
25
7.5
M5
17
8
31
25
KM-SND32
32
10
M6
18
8
52
34
KM-SND36
36
10
M6
18
8
60
50
KM-SND42
42
10
M6
18
8.6
95
72
KM-LND48
48
12
M8
24
11
160
81
KM-LND55
55
12
M8
28
12
230
95
KM-LND60
60
12
M8
28
15
340
160
KM-LND70
70
17
M10
34
17
520
200
KM-LND75
75
17
M10
35
18
635
250
KM-LND80
80
17
M10
35
18
715
300
KM-LND90
90
17
M10
35
18
910
360
KM-LND120
120
22
M12
40
18
1660
480
2.Technical informations
Dimensions: Standard size or custom
Grade of magnet: N35,N42,N52,or higher grade of magnet can be customzed for high temperature requirements,such as M or H series and the temp. resistance is 100 deg.c or 120 deg.c
Processing technology of steel cup: Stamping machining or lathe machining.
Surface treatment: Znic,Nikcel,Chrome,Epoxy,Color paint.
Tolerance: +/-0.05mm
Vertically force: From 2 Kg to 480 Kg
3.The main types of pot neodymium magnets
7. Block shap with one or two countersunk hole
Depending on the requirements of your installation,you can choose the appropriate type.
Here is the catalog of pot neodymium magnet,or you can download it by clicking the "Download" menu in the upper right corner.
4.Grade of NdfeB Magnet:
If your application is at room temperature only,the N series is the best choice,with a max operating temperature 80 degrees Celsius. In the N series,the N55 grade has strongest magnetic force,and is also the most expensive. Generally speaking,the N35 grade is relatively cost-effective and also have strong magnetic force.But which grade to choose depends on your pursuit of magnetic force or say application.
The higher the temperature of resistance of the magnet,the more expensive it is.For example,N35 grade and N35M grade have the same magnetic force,but the max opearting temp. of N35M is 100 degrees Celsuis
Please click here to check the properities of sintered neodymium magnet.
