Alnico Magnet is composed primarily of Aluminum, Nickel. Cobalt, Copper and Iron. It have very good corrosion resistence and high max working temperature, can reach 550deg C. Although other materials offer greater energy and coercivity values, the high remanence and thermal stability of Alnico makes it the most cost effective material for certain applications, like generator, microphone lifting, voltmeters and measuring instruments. It is widely applied in high stability fields as aerospace, military, automobiles and security system.

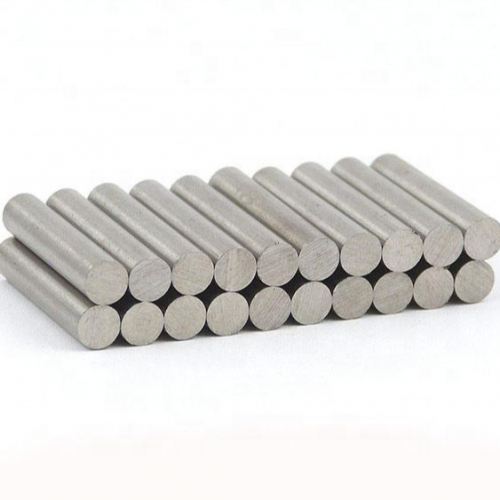

Alnico 3 For generator,micorphone lifting 1.Dimensions: According to your requirements 2.Grade: Alnico 5 , Alinico 6, Alnico 8, Alnico 9 and etc. 3.Max Operating Temperature: 450-550 degree celsius 4.Processing technique: Sintered and Cast 5.Magnetized: Thickness,Width,Length or Multi-Poles
Alnico Magnet 1.Dimensions: According to your requirements 2.Grade: Alnico 5 , Alinico 6, Alnico 8, Alnico 9 and etc. 3.Max Operating Temperature: 450-550 degree celsius 4.Processing technique: Sintered and Cast 5.Magnetized: Thickness,Width,Length or Multi-Poles
Alnico 8 For Guitar Pickups 1.Dimensions: According to your requirements 2.Grade: Alnico 5 , Alinico 6, Alnico 8, Alnico 9 and etc. 3.Max Operating Temperature: 450-550 degree celsius 4.Processing technique: Sintered and Cast 5.Magnetized: Thickness,Width,Length or Multi-Poles
Alnico 8 For Guitar Pickups 1.Dimensions: According to your requirements 2.Grade: Alnico 5 , Alinico 6, Alnico 8, Alnico 9 and etc. 3.Max Operating Temperature: 450-550 degree celsius 4.Processing technique: Sintered and Cast 5.Magnetized: Thickness,Width,Length or Multi-Poles

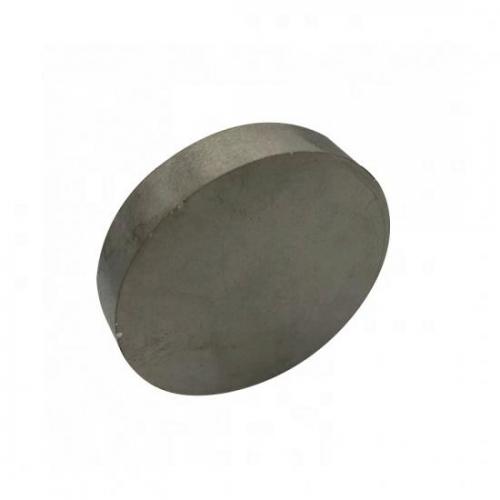

Disc Shaped Alnico Magnets 1.Dimensions: According to your requirements 2.Grade: Alnico 5 , Alinico 6, Alnico 8, Alnico 9 and etc. 3.Max Operating Temperature: 450-550 degree celsius 4.Processing technique: Sintered and Cast 5.Magnetized: Axial,Diametrial or Multi-Poles 6.Advantage: High working temperature and resistant to corrosion
Disc Shaped Alnico Magnets 1.Dimensions: According to your requirements 2.Grade: Alnico 5 , Alinico 6, Alnico 8, Alnico 9 and etc. 3.Max Operating Temperature: 450-550 degree celsius 4.Processing technique: Sintered and Cast 5.Magnetized: Axial,Diametrial or Multi-Poles 6.Advantage: High working temperature and resistant to corrosion
Arc Neodymium Magnet Neodymium magnet (NdFeB), commonly known as "rare earth" magnet, is a high-performance permanent magnet made of neodymium, iron and boron alloys. They are real permanent magnets and will not lose their magnetism unless heated to a temperature exceeding the maximum operating temperature rating or their protective coating is damaged. Characteristic: -Energy products may exceed 50mgoe -Low corrosion resistance Applications: -automotive -electronics (sensors, speakers, scanners) -medical (scanners) -magnetic separators
Block Neodymium Magnet 1.Dimensions: Customized / Produce according to your needs 2.Materials: NdFeB,Grade N35 to N52 (M,H,SH,UH,EH AH) 3.Plating/Coating: Nickel,Zinc,Epoxy and etc. 4.Magnetization direction: Through thickness,width,or length 5.Max operating temp.: 80 to 220 degrees celsius It can be very small block/cube,or it can be big block/bar and become a very powerful magnet.They are often used for industrial applications.
Laminated Magnet 1. Insulation layer thickness within 0.04mm. Insulation layers: 2-40 layers. 2. At normal temperature, the bonding strength of the insulation layer can reach more than 50Mpa. 3. The maximum operating temperature is 60-250 ℃. 4. Tolerance is within 0.05mm. 5. Each magnets are insulated from each other.
Laminated Magnet 1. Insulation layer thickness within 0.04mm. 2. At normal temperature, the bonding strength of the insulation layer can reach more than 50Mpa. 3. The maximum operating temperature can reach 200 ℃. 4. Tolerance is within 0.05mm. 5. Each magnets are insulated from each other.
Laminated Magnet 1. Insulation layer thickness within 0.04mm. 2. At normal temperature, the bonding strength of the insulation layer can reach more than 50Mpa. 3. The maximum operating temperature can reach 200 ℃. 4. Tolerance is within 0.05mm. 5. Each magnets are insulated from each other.
