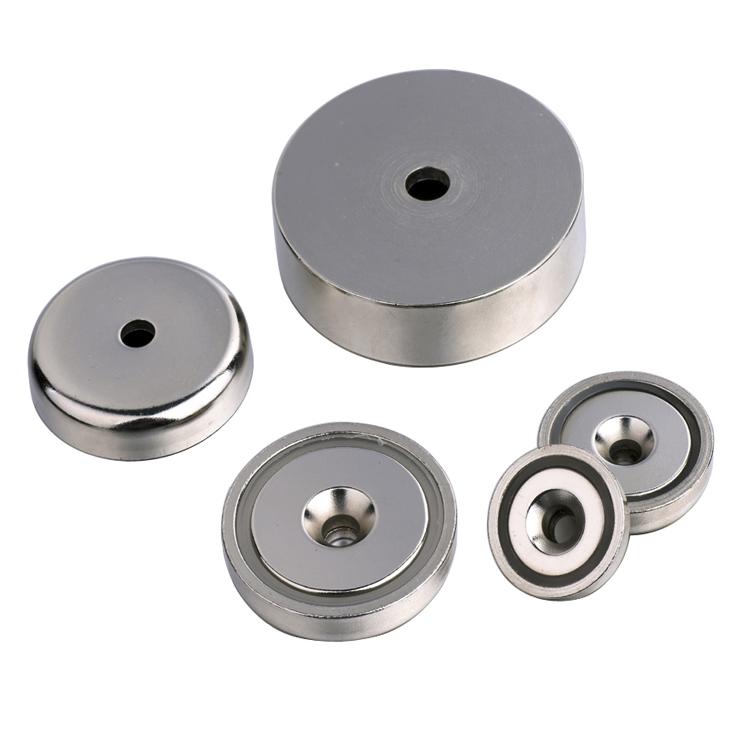

Countersunk NdFeB Pot Magnet
1.Dimensions: Dia from 12mm to 120mm
2.Materials: NdFeB,Grade N35 to N52 (M,H,SH,UH,EH AH)
3.Plating/Coating: Zinc,Nickel,Epoxy or Color paint.
4.Magnetization direction: Axial magnetized
5.Max operating temp.: 80 to 220 degrees celsius
They are ideal for using in fixing applications such as doors,panels,marketing displays,light fixtures and fittings.

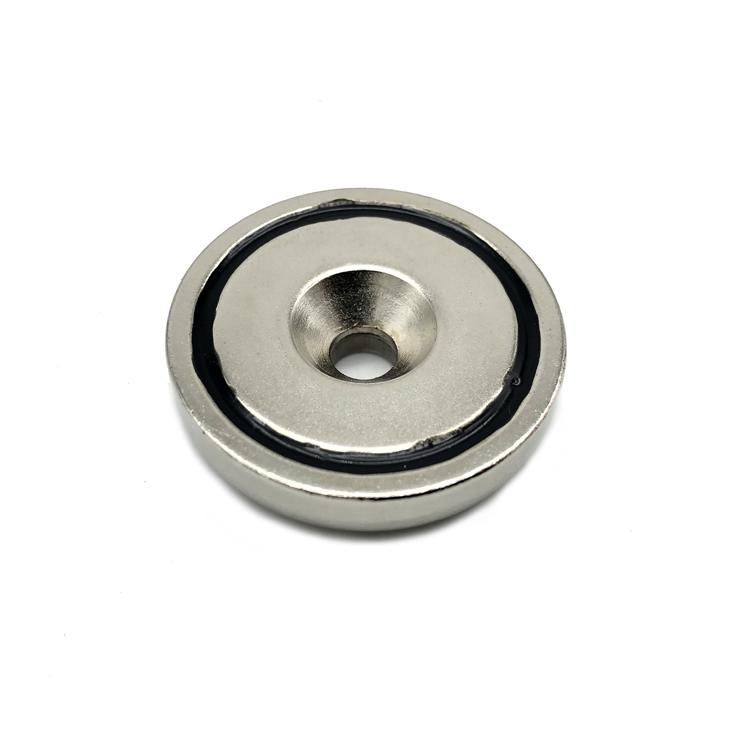

This pot magnet with a counterusnk hole,can easy use screw to mount on the wall,celling or your other application.Normally the hole can with M3,M4,M5,M6,M8 or as your request type of screw to custom.

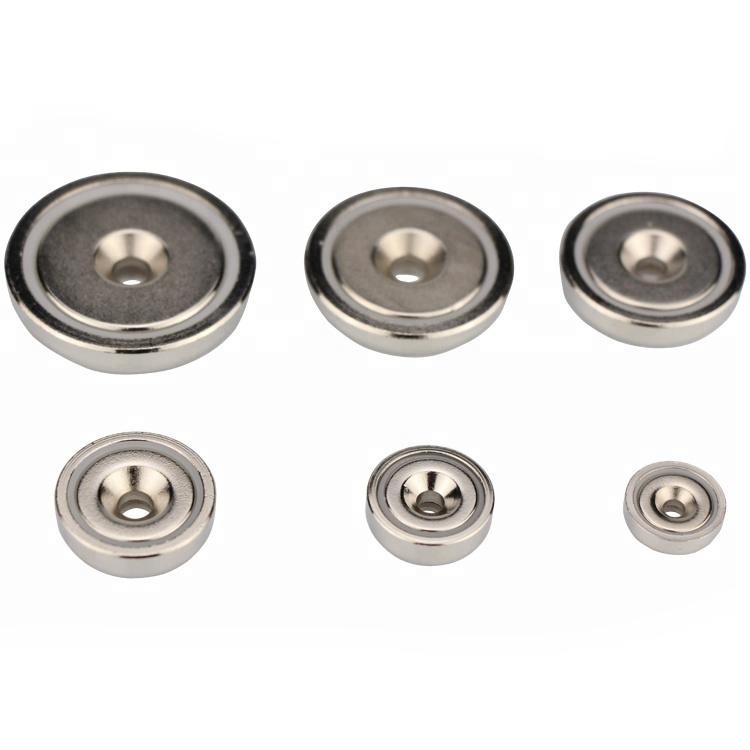

1.Standard size of countersunk neodymium pot magnet
| Model | D(mm) | d(mm) | d1(mm) | H(mm) | Weight(g) | Pull Force(KG) |
| KM-SNA12 | 12 | 3.5 | 6.5 | 4.5 | 4 | 2.5 |
| KM-SNA16 | 16 | 3.5 | 6.5 | 5 | 7 | 6 |
| KM-SNA20 | 20 | 4.5 | 8.6 | 7 | 14 | 11 |
| KM-SNA25 | 25 | 5.5 | 10.6 | 8 | 25 | 22 |
| KM-SNA32 | 32 | 5.5 | 10.6 | 8 | 42 | 32 |
| KM-SNA36 | 36 | 6.5 | 11.3 | 8 | 54 | 43 |
| KM-SNA42 | 42 | 6.5 | 11.3 | 8.6 | 78 | 65 |
| KM-SNA48 | 48 | 8.5 | 19 | 10.8 | 120 | 75 |
| KM-LNA48 | 48 | 8.5 | 15.5 | 11 | 138 | 75 |
| KM-LNA55 | 55 | 8.5 | 14.5 | 12 | 205 | 95 |
| KM-LNA60 | 60 | 8.5 | 14.5 | 15 | 305 | 160 |
| KM-LNA70 | 70 | 10.5 | 16.5 | 17 | 485 | 210 |
| KM-LNA75 | 75 | 10.5 | 16.5 | 18 | 560 | 250 |
| KM-LNA80 | 80 | 10.5 | 16.5 | 18 | 668 | 300 |
| KM-LNA90 | 90 | 10.5 | 16.5 | 18 | 850 | 380 |
| KM-LNA120 | 120 | 12.5 | 22.5 | 18 | 1520 | 480 |
2.Technical informations
Dimensions: Standard size or custom
Grade of magnet: N35,N42,N52,or higher grade of magnet can be customzed for high temperature requirements,such as M or H series and the temp. resistance is 100 deg.c or 120 deg.c
Processing technology of steel cup: Stamping machining or lathe machining.
Surface treatment: Znic,Nikcel,Chrome,Epoxy,Color paint.
Tolerance: +/-0.05mm
Vertically force: From 2.5 Kg to 480 Kg
3.The main types of pot neodymium magnets
7. Block shap with one or two countersunk hole
Depending on the requirements of your installation,you can choose the appropriate type.
Here is the catalog of pot neodymium magnet,or you can download it by clicking the "Download" menu in the upper right corner.
4.Grade of NdfeB Magnet:
If your application is at room temperature only,the N series is the best choice,with a max operating temperature 80 degrees Celsius. In the N series,the N55 grade has strongest magnetic force,and is also the most expensive. Generally speaking,the N35 grade is relatively cost-effective and also have strong magnetic force.But which grade to choose depends on your pursuit of magnetic force or say application.
The higher the temperature of resistance of the magnet,the more expensive it is.For example,N35 grade and N35M grade have the same magnetic force,but the max opearting temp. of N35M is 100 degrees Celsuis
Please click here to check the properities of sintered neodymium magnet.
