Strong NeFeB Magnetic Hook With Carabiner
1.Dimensions: Dia 25, 32, 36 mm
2.Materials: NdFeB,Grade N42
3.Plating/Coating: Zinc,Nickel,Epoxy or Color painted.
4.Magnetization direction: Axial magnetized
5.Max operating temp.: 80 degrees celsius

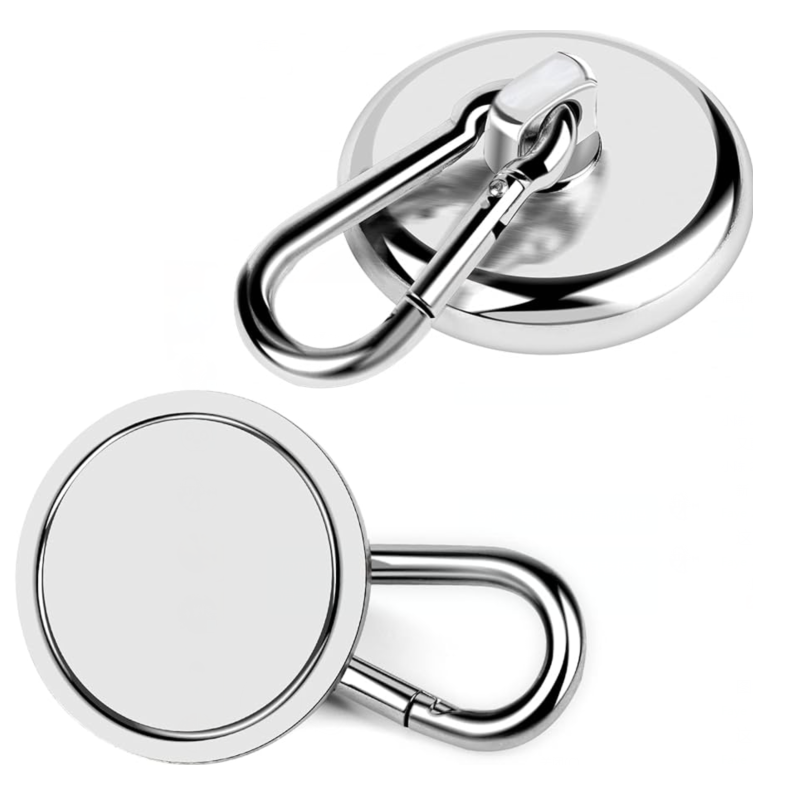

Neodymium Magnet Hook - With Carabiner
If you hooked on staying organize your workspace for safety and efficiency,these lightweight magnetic pull hook with carabiner are for you.they are easy to attach items to all metal surfaces or other ferromagnetic surfaces,just like refriderator,cabinet,tabels,beams,metal studs,workbenches,toolboxes and so on.Thye are good to use at home,workshop,office,retail shop,warehouse or other filed to save space and organize your work.But they can’t to stick at brass,aluminum,copper or lead surface.
1.Standard size of NdFeB magnetic hook with carabiner
| Model | D(mm) | d(mm) | d1 (mm) | d2 (mm) | W(mm) | H(mm) | h (mm) | Weight(g) | Breakaway(kg) |
| KM-SNL25 | 25 | 12 | 4 | 5 | 5 | 17.7 | 8 | 30 | 17 |
| KM-SNL32 | 32 | 12 | 4 | 5 | 5 | 17.6 | 8 | 47 | 28 |
| KM-SNL36 | 36 | 15 | 5 | 5 | 5 | 17.8 | 8 | 59 | 35 |

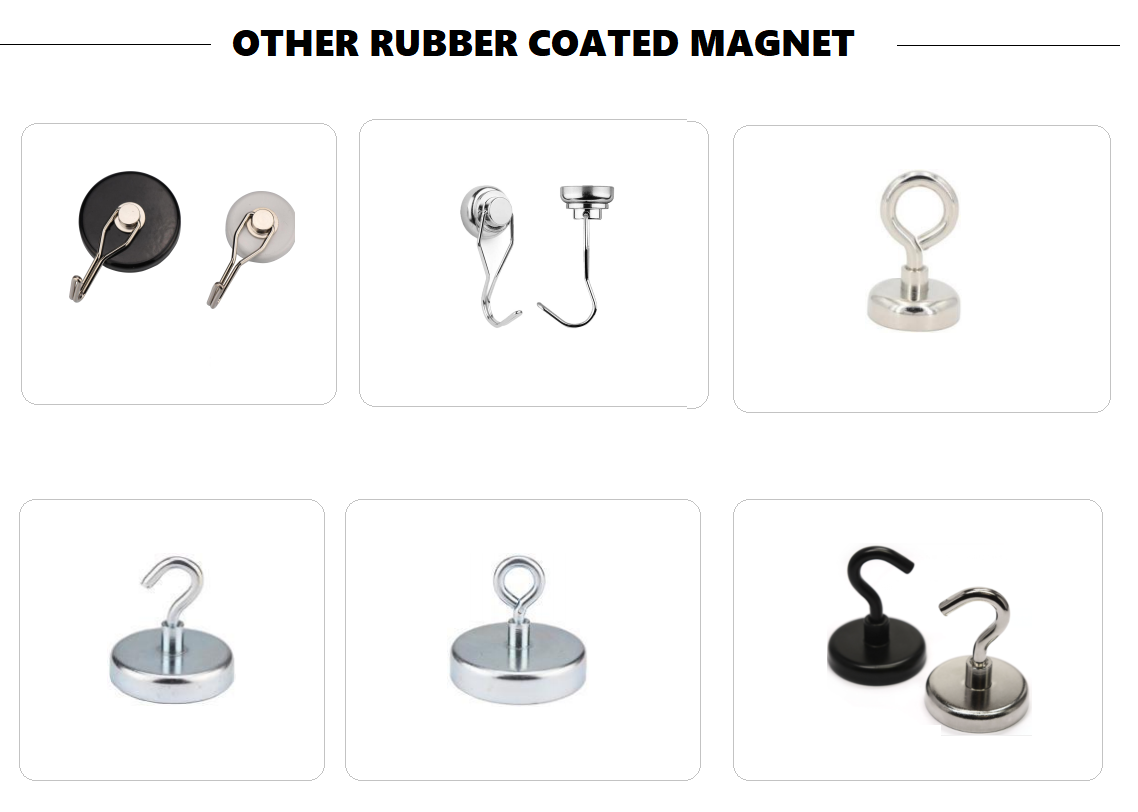

2.The main types of pot neodymium magnets
1. Steel case NdFeB magnetic hook with fixation hook
2. Steel case NdFeB magnetic hook with eyelet hook
3. Steel case NdFeB magnetic hook with swivel hook
4. Steel case NdFeB magnetic hook with carabiner
5. Steel case Ferrite magnetic hook
6. Plastic case NdFeB magnetic hook with swivel hook and rubber coated (360 dge.)
How to get a best quote?
After confirming the above four details,or if you have any futher questions,we would love to receive your email or messages.We will calcualte the price asap according to your order/sample quantity,and respond to your concerns.
