Ferrite Magnetic Hook
1.Dimensions: Dia 25 mm to 80 mm
2.Materials: Ferrite Magnet + Steel Cup
3.Plating/Coating: Zinc,Nickel,Epoxy or Color painted.
4.Magnetization direction: Axial magnetized
5.Max operating temp.: 80 degrees celsius
Frrite Magnetic Hook
If you hooked on staying organize your workspace for safety and efficiency and want with less expensive,these lightweight ferrite magnetic pull hook are for you.For ferrite magnet,the force no so strong as neodymium ,but have same feature as neodymium magnetic hook,they are easy to attach items to all metal surfaces or other ferromagnetic surfaces,just like refriderator,cabinet,tabels,beams,metal studs,workbenches,toolboxes and so on.Thye are good to use at home,workshop,office,retail shop,warehouse or other filed to save space and organize your work.But they can’t to stick at brass,aluminum,copper or lead surface.

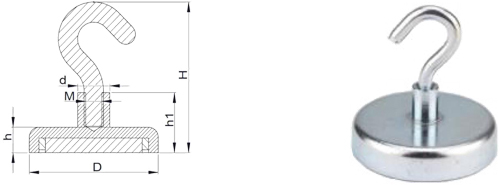

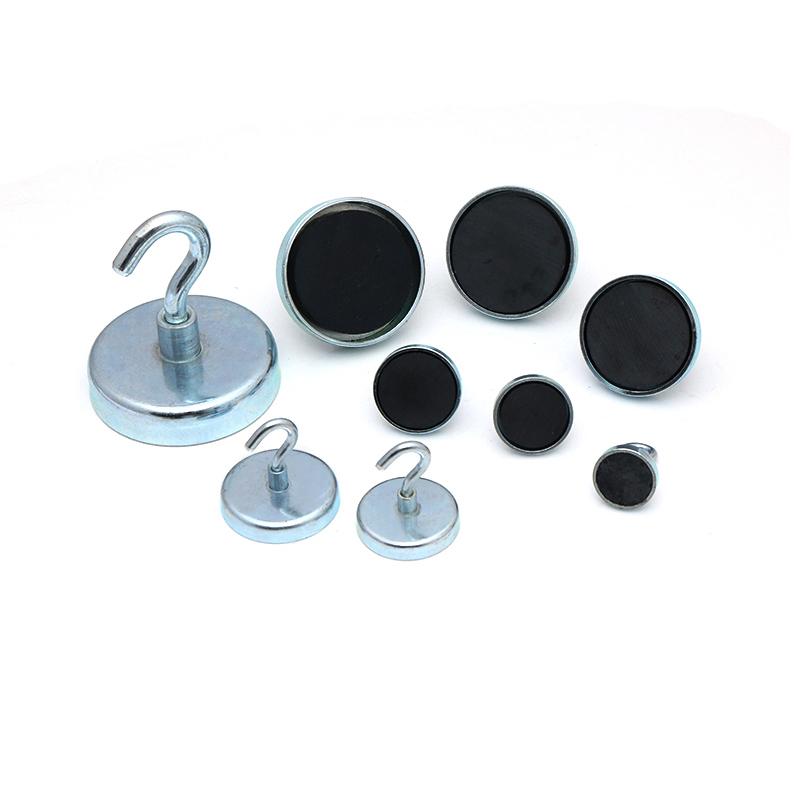

1.Ferrite magnetic hook with fixation hook
| Model | D(mm) | d(mm) | M | h(mm) | h1(mm) | H(mm) | Weight(g) | Breakaway(kg) |
| KM-SFE25 | 25 | 6.5 | M4 | 7 | 15.6 | 38.6 | 25 | 4.5 |
| KM-SFE32 | 32 | 6.5 | M4 | 7 | 15 | 38 | 34 | 8.5 |
| KM-SFE36 | 36 | 6.5 | M4 | 8 | 16 | 39 | 48 | 11 |
| KM-SFE40 | 40 | 7.5 | M5 | 8 | 18 | 46 | 58 | 13 |
| KM-SFE47 | 47 | 7.5 | M5 | 9 | 18.5 | 46.5 | 88 | 18 |
| KM-SFE50 | 50 | 7.5 | M5 | 10 | 20 | 48 | 109 | 23 |
| KM-SFE57 | 57 | 7.5 | M5 | 10.5 | 20 | 48 | 148 | 29 |
| KM-SFE63 | 63 | 10 | M6 | 14 | 25.5 | 56.8 | 220 | 36 |
| KM-SFE80 | 80 | 10 | M8 | 18 | 30.5 | 67.5 | 430 | 62 |

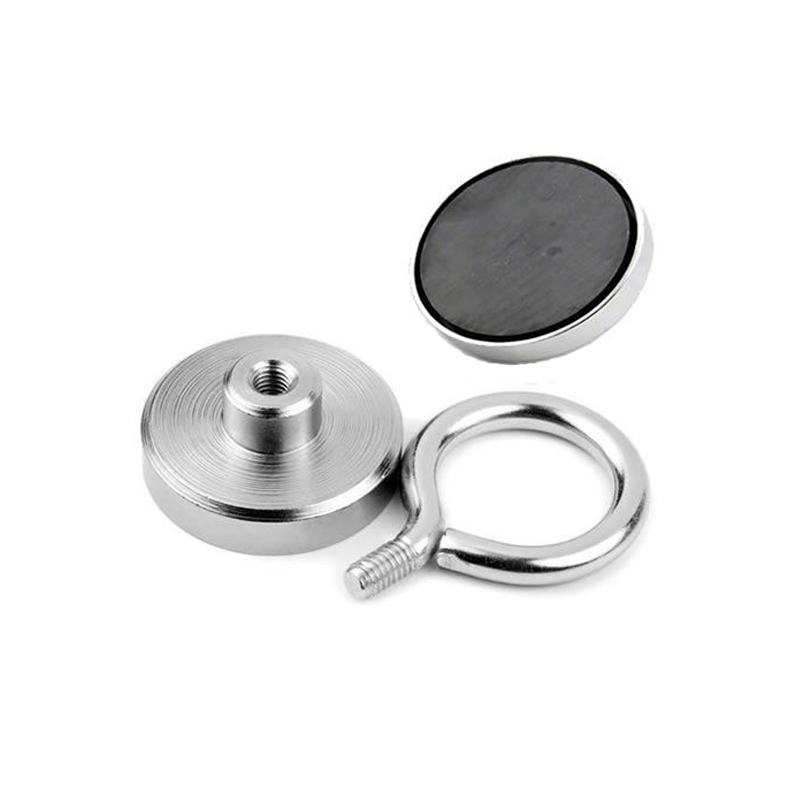

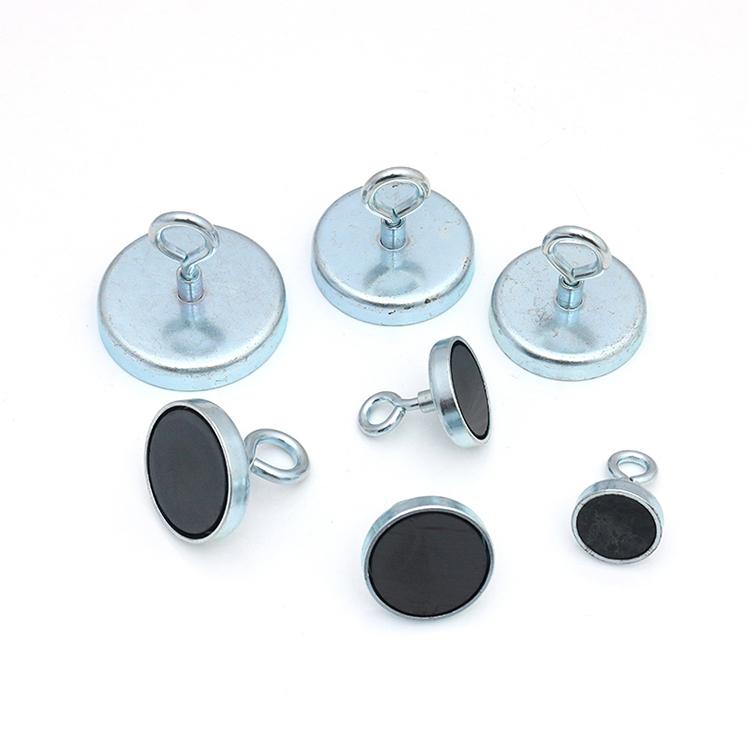

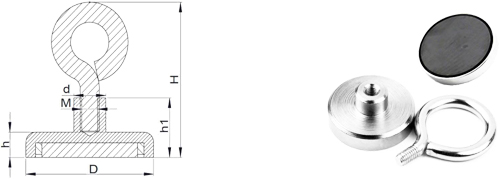

2.Ferrite magnetic hook with eyelet/eyebolt hook
Model
D(mm)
d(mm)
M
h(mm)
h1(mm)
H(mm)
Weight(g)
Breakaway(kg)
KM-SFF25
25
6.5
M4
7
15.6
38.6
25
4.5
KM-SFF32
32
6.5
M4
7
15
38
34
8.5
KM-SFF36
36
6.5
M4
8
16
39
48
11
KM-SFF40
40
7.5
M5
8
18
46
58
13
KM-SFF47
47
7.5
M5
9
18.5
46.5
88
18
KM-SFF50
50
7.5
M5
10
20
48
109
23
KM-SFF57
57
7.5
M5
10.5
20
48
148
29
KM-SFF63
63
10
M6
14
25.5
56.8
220
36
KM-SFF80
80
10
M8
18
30.5
67.5
430
62

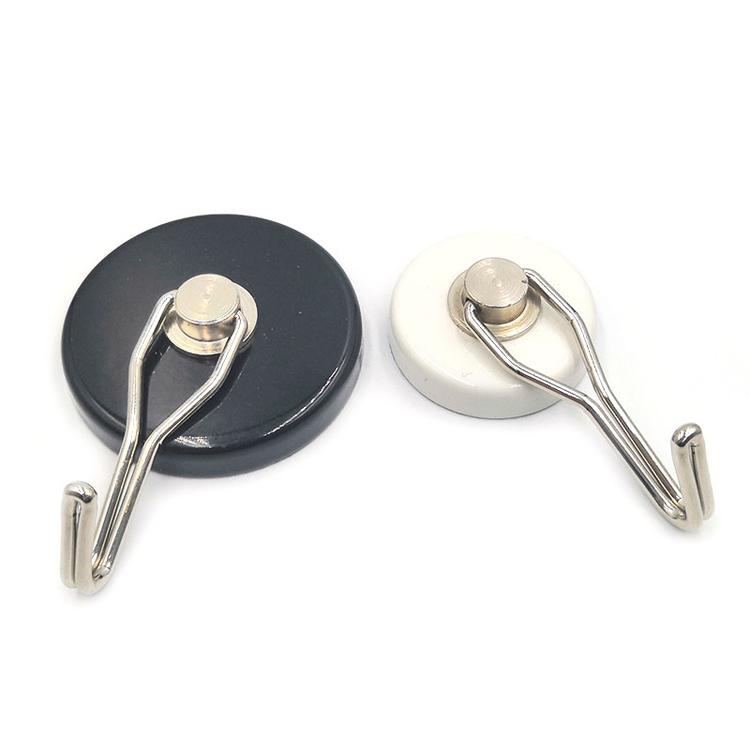

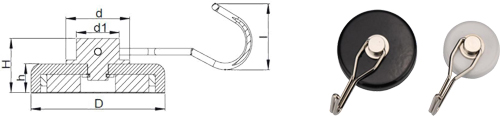

3.Ferrite magnetic hook with swivel hook
Model
D(mm)
d(mm)
d1(mm)
H(mm)
h(mm)
I(mm)
Weight(g)
Vertical
Breakaway
(Kg)
Side
Breakaway
(kg)
KM-SFG36
36
16
10.8
14.5
8.3
20
50
4.2
1.7
KM-SFG52
52
16
10.8
14.5
8.3
20
80
7.4
2.5
4.The main types of pot neodymium magnets
1. Steel case NdFeB magnetic hook with fixation hook
2. Steel case NdFeB magnetic hook with eyelet hook
3. Steel case NdFeB magnetic hook with swivel hook
4. Steel case NdFeB magnetic hook with carabiner
5. Steel case Ferrite magnetic hook
6. Plastic case NdFeB magnetic hook with swivel hook and rubber coated (360 dge.)
5.Grade of NdfeB Magnet:
If your application is at room temperature only,the N series is the best choice,with a max operating temperature 80 degrees Celsius. In the N series,the N55 grade has strongest magnetic force,and is also the most expensive. Generally speaking,the N35 grade is relatively cost-effective and also have strong magnetic force.But which grade to choose depends on your pursuit of magnetic force or say application.
The higher the temperature of resistance of the magnet,the more expensive it is.For example,N35 grade and N35M grade have the same magnetic force,but the max opearting temp. of N35M is 100 degrees Celsuis
Please click here to check the properities of sintered neodymium magnet.
