Multi pole Bonded neodymium magnet
1.Dimensions: According to your requirements
2.Grade: BN-4,BN-6,BN-10 and etc
3.Max Operating Temperature: 120-160 degree celsius
4.Coating: Epoxy,Parylene
5.Magnetized: Axial,Diametrical or Multi-Poles
6.Advantage: Extreme resistance to demagnetization and complex shapes possible.
Physical Properties
Density: 5.2-6.4g/cm³ - Compaction
Permeability:1.2( μH/M) - Compaction
Temperature Coefficient:-0.1 ~ -0.14(%/℃) - Compaction
Curie Temperation: 300 - 360 (℃) - Compaction
Max. Operation Temperature: 120-160 (℃) - Compaction
Hardness :35-45
Magnetic property of Bonded Neodymium magnet
Relatively powerful products. Very high resistance to demagnetization. Low operating temperature (under 80 to 150°C). For details, to click the table of Bonded Neodymium Magnetic Property.5.POS system,Instrument
Manufacturing Technique - Compaction Bonded Neodymium Magnet
1.Material: Isotopic NdFeB power(MQP) + Adhesives

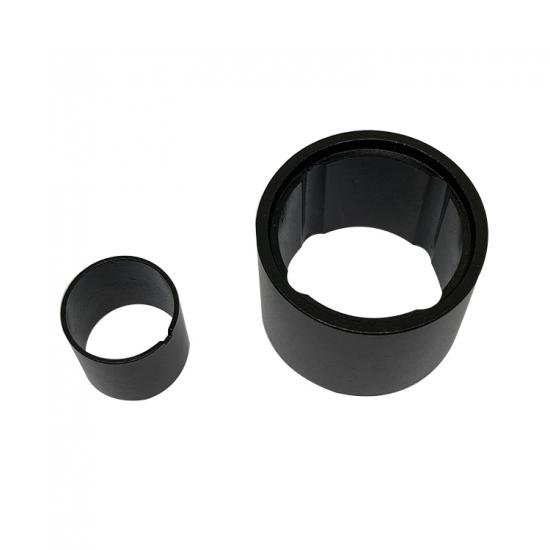

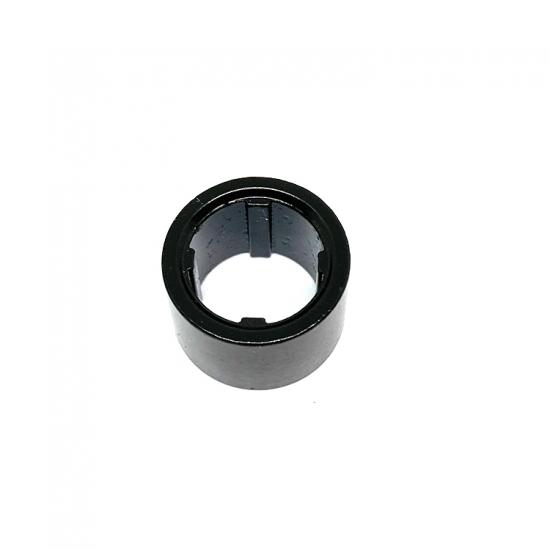

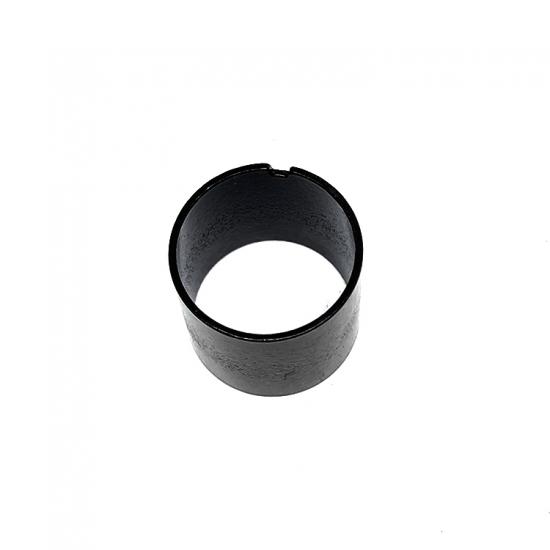

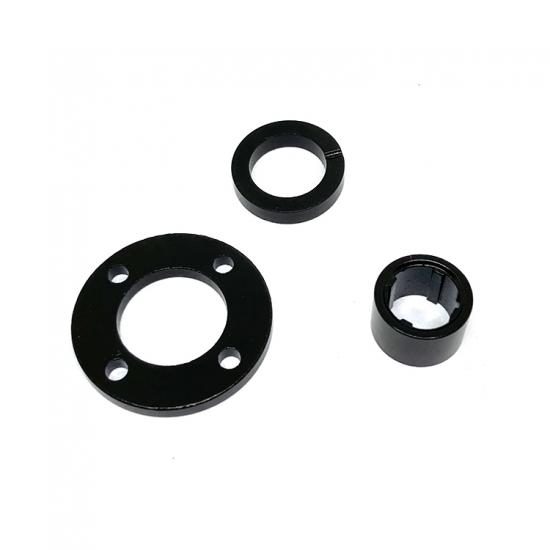

6.Types: 8 poles magnet,multi pole ring neodymium magnet
We have many molds,please see below,offer you some items for reference.Welcome to send me an inquiry,them we will try to match a close mold for your reference.Which can help you save more cost to develop a new mold on prototype stage.
