Arc Bonded NdFeB Magnet

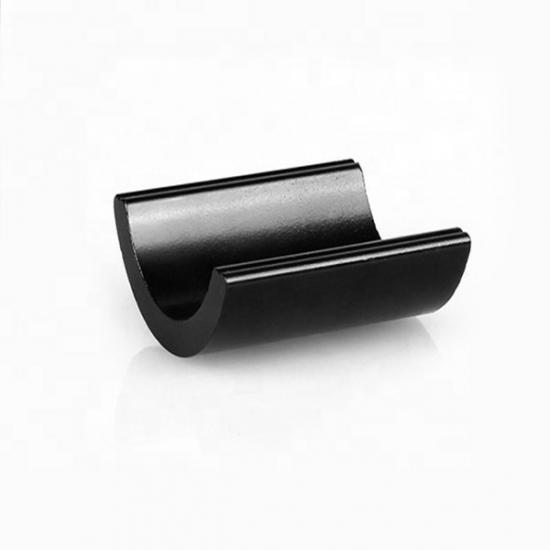

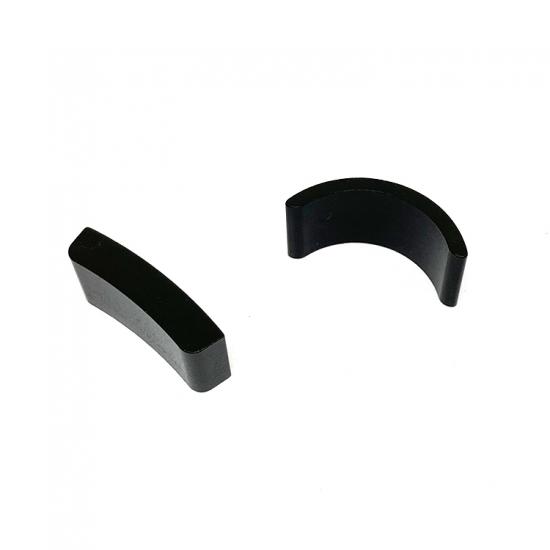

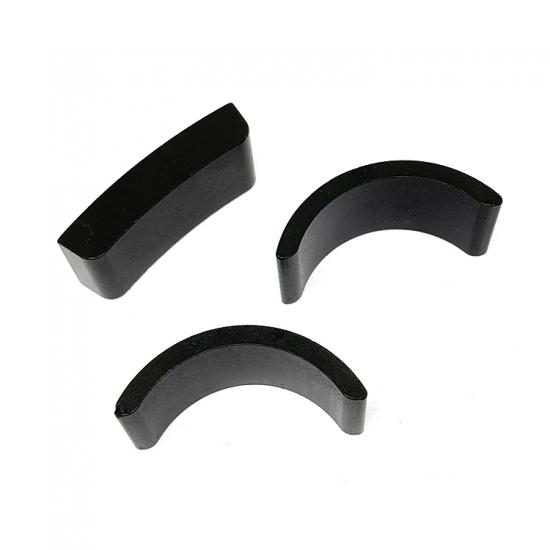

Arc Bonded NdFeB Magnet

Arc Bonded NdFeB Magnet Arc Bonded NdFeB Magnet Arc Bonded NdFeB Magnet

Arc Bonded Neodymium Magnet


1.Dimensions: According to your requirements


2.Grade: BN-4,BN-6,BN-10 and etc


3.Max Operating Temperature: 120-160 degree celsius


4.Coating: Epoxy,Parylene


5.Magnetized: Diametrical,Width,Thickness


6.Advantage: Extreme resistance to demagnetization and complex shapes possible.

inquiry Form
Product Detail

Physical Properties

Density: 5.2-6.4g/cm³ - Compaction
Permeability:1.2( μH/M) - Compaction
Temperature Coefficient:-0.1 ~  -0.14(%/℃) - Compaction
Curie Temperation: 300 - 360 (℃) - Compaction
Max. Operation Temperature:   120-160 (℃) - Compaction
Hardness :35-45

Magnetic property of Bonded NdFeB magnets

Relatively powerful products. Very high resistance to demagnetization. Low operating temperature (under 80 to 150°C). For details, to click the table of Bonded Neodymium Magnetic Property.

Applications of Bonded Neodymium magnet
1.Automobile Industry
2.Transmission motor of office equipments
3.IT Indurstry(HDD,ODD etc.)
4.Appliances motors(vacuum cleaner,washing motor etc)

5.POS system,Instrument


Manufacturing Technique - Compaction Bonded Neodymium Magnet

1.Material: Isotopic NdFeB power(MQP) + Adhesives
2.Shape: Block,colum,arc,ring and so on.
3.Size Range: D1-D300 mm
4.Coating: Epoxy,Parylene,Others
5.Magnetization: Diametrical,Width,Thickness and so on

We have many molds,please see below,offer you some items for reference.Welcome to send me an inquiry,them we will try to match a close mold for your reference.Which can help you save more cost to develop a new mold on prototype stage.
