Custom Disc Samarium Cobalt Magnet,Disc Samarium Cobalt Magnet Manufacturer

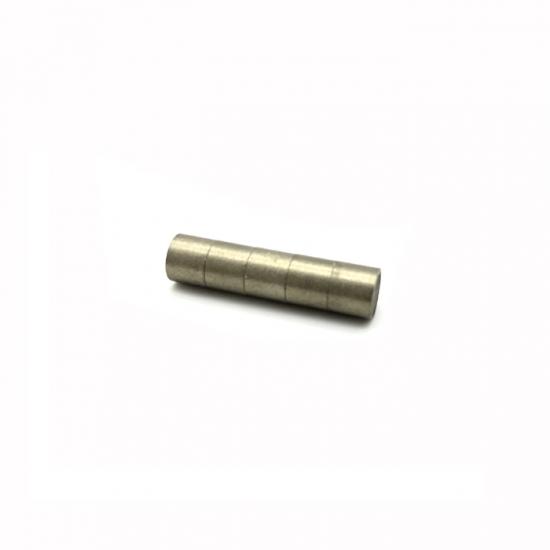

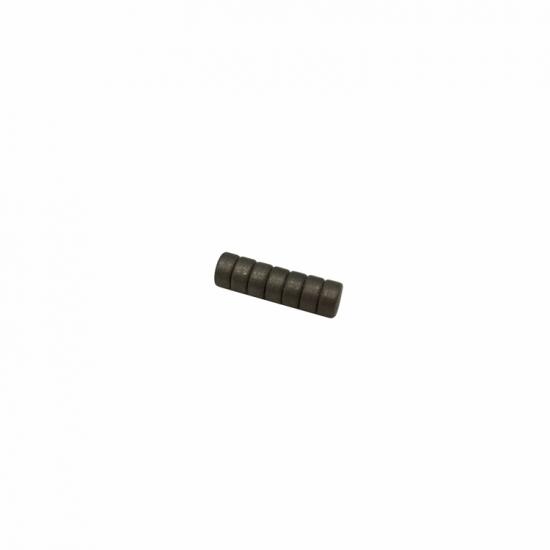

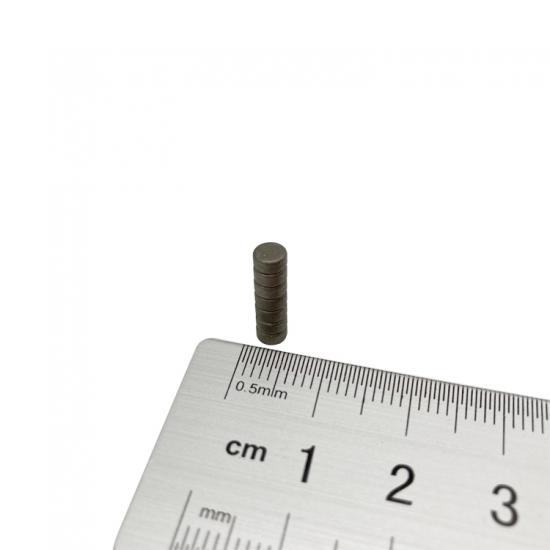

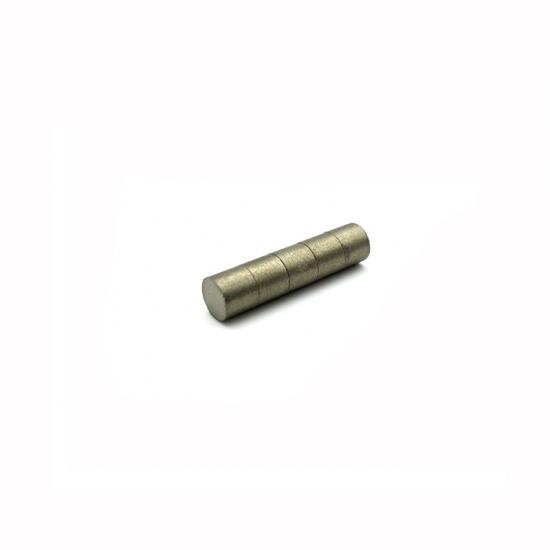

Disc Samarium Cobalt Magnet

Samarium Cobalt Smco Magnets

1.Dimensions: According to your requirements

2.Grade: YXG26 28 30,YXG26H 28H 30H and etc.

3.Max Operating Temperature: 250 ~350 degree celsius

4.Material:SmCo5,Sm2Co17

5.Magnetized: Axial,Diametrial and etc.

inquiry Form

Product Detail

Product Detail

Physical Properties

Parameter Name	Unit	SmCo5	Sm2Co17
Density	g/m³	8.2 ~ 8.4	8.3 ~ 8.5
Curie Temperature	℃	700 ~ 750	800 ~ 850
Max. Operating Temperature	℃	250	350
Temperature Coefficient Of Br	%/℃	-0.05	-0.03
Vickers Hardness	HV	450 ~ 500	550 ~600
Electronic Ressistivity	Ω.cm 10(-5)	5 ~ 6 x 10(-5）	8 ~ 9 x
Thermal Conductivity	W/mK	12	13

Typical product Specification

We have professional team, advanced equipment and well-trained QC staff to develop different sizes and shapes magnets as customer requirements which can be ensured with very high quality and precise tolerance.Please see below dimensions of round SmCo Magnet.

Length(mm)	Width(mm)	Thickness(mm)	Tolerance(mm)
L 2-120	W 1-60	T 1-60mm	+/-0.05 - +/-0.1

Typical Applications of Samarium Cobalt Magnet

1. High temperature Motors and Generators
2. Military applications
3. Automotive (sensors)
4. Aerospace (sensors)
5. Magnetic pump couplings
6. Oil drilling applications
7. Cryogenic applications

For more technical details,You also can check our Catalog of SmCo magnet.
