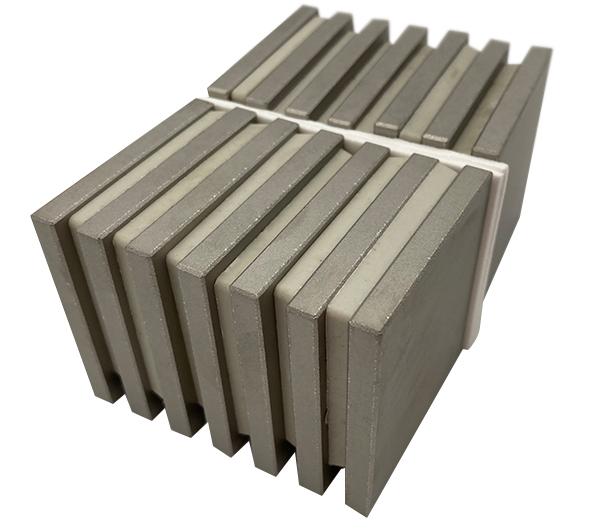

Motor Magnet SmCo Magnet
1.Dimensions: According to your requirements
2.Grade: YXG26 28 30,YXG26H 28H 30H and etc.
3.Max Operating Temperature: 250 ~350 degree celsius
4.Material:SmCo5,Sm2Co17
5.Magnetized: Length,Width,Thickness and Muti-Poles
6.Advantage:High working temperature,Extremely resistant to demagnetization,Resistant to corrosion
Physical Properties
|
Parameter Name |
Unit |
SmCo5 |
Sm2Co17 |
|
Density |
g/m³ |
8.2 ~ 8.4 |
8.3 ~ 8.5 |
|
Curie Temperature |
℃ |
700 ~ 750 |
800 ~ 850 |
|
Max. Operating Temperature |
℃ |
250 |
350 |
|
Temperature Coefficient Of Br |
%/℃ |
-0.05 |
-0.03 |
|
Vickers Hardness |
HV |
450 ~ 500 |
550 ~600 |
|
Electronic Ressistivity |
Ω.cm 10(-5) |
5 ~ 6 x 10(-5） |
8 ~ 9 x |
|
Thermal Conductivity |
W/mK |
12 |
13 |
Typical product Specification

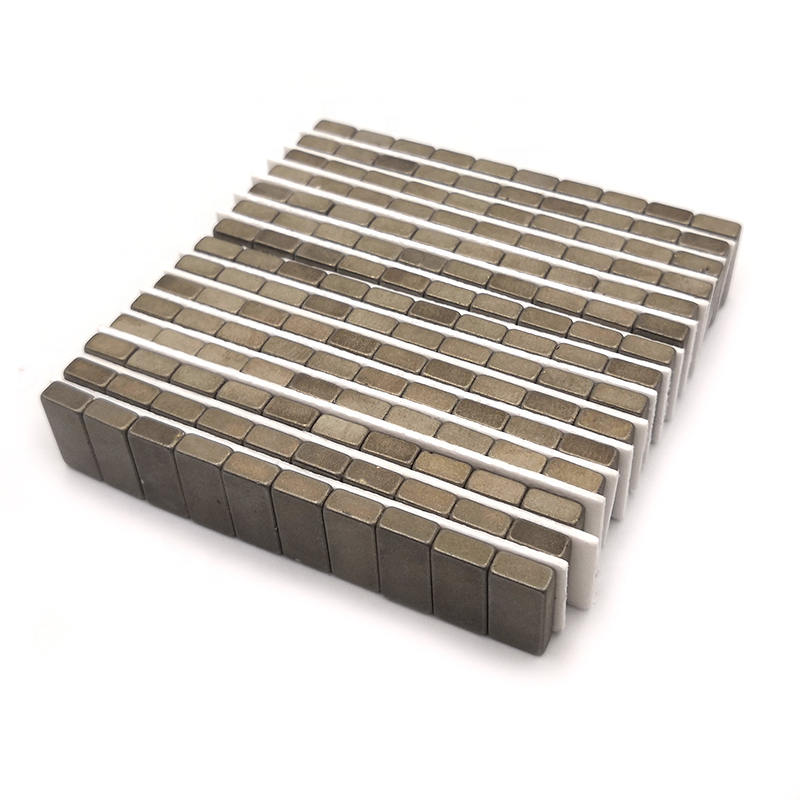

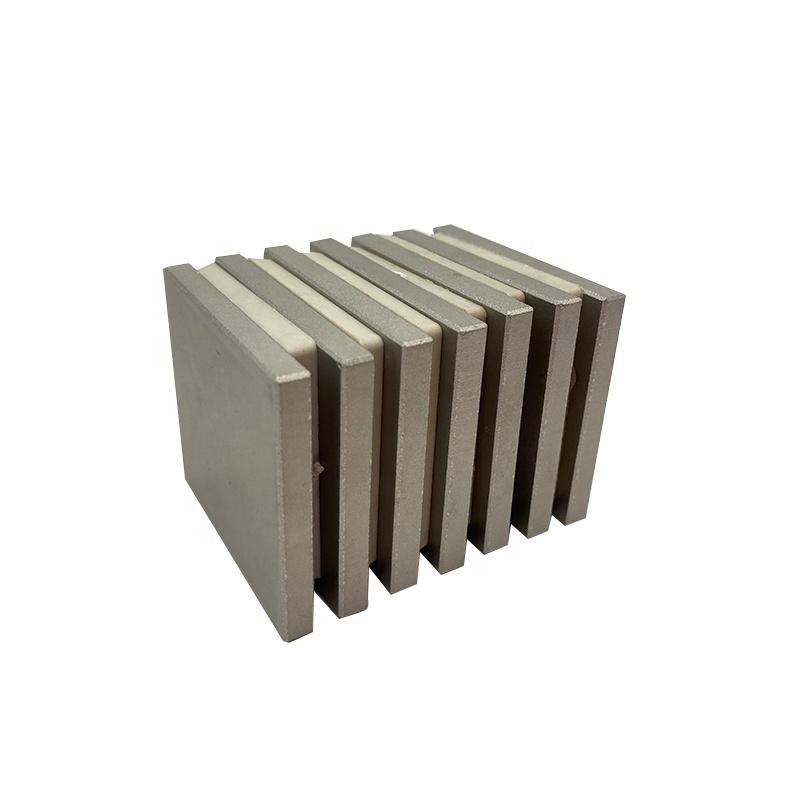

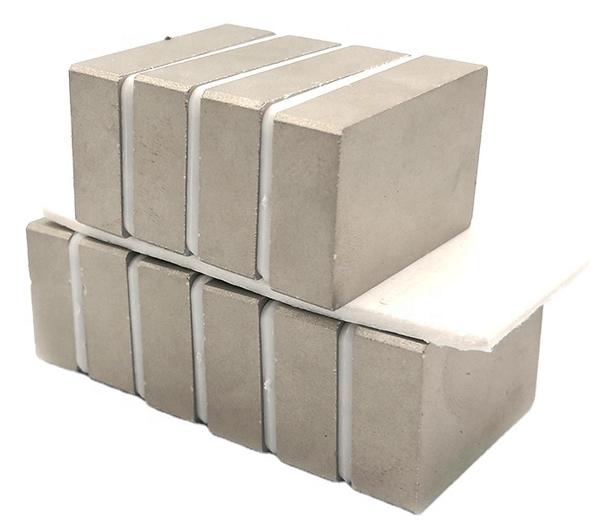

We have professional team, advanced equipment and well-trained QC staff to develop different sizes and shapes magnets as customer requirements which can be ensured with very high quality and precise tolerance.Please see below dimensions of block SmCo Magnet.
|
Length(mm) |
Width(mm) |
Thickness(mm) |
Tolerance(mm) |
|
L 2-120 |
W 1-60 |
T 1-60mm |
+/-0.05 - +/-0.1 |
Typical Applications of Samarium Cobalt Magnet
1. High temperature Motors and Generators
2. Military applications
3. Automotive (sensors)
4. Aerospace (sensors)
5. Magnetic pump couplings
6. Oil drilling applications
7. Cryogenic applications
For more technical details,You also can check our Catalog of SmCo magnet.
