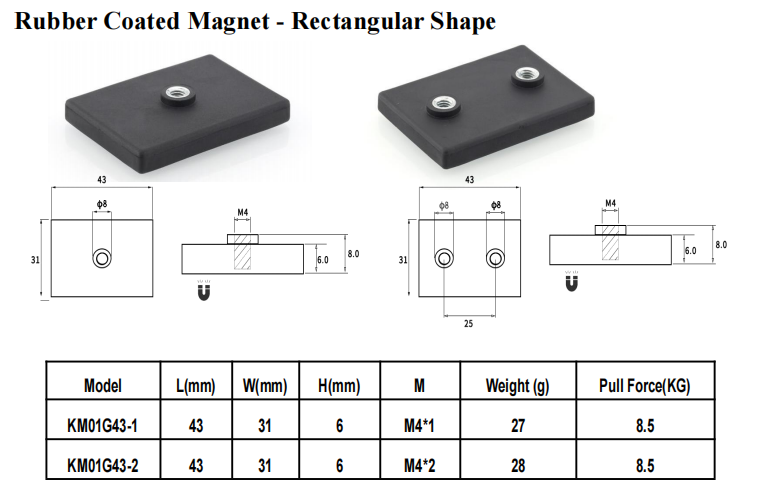

Rectangular Rubber Coated Magnet With Pull Force 8.5 KG
1. Dimension: L 43 x W 31 x H 6.9 mm
2. Pull force : 8.5 KG
3. Connection type: Internal thread,Screwed bush,External thread
4. Thread type: One or two thread M4 bush thread hole
5. Product structure: NdFeB magnet + A3 steel + TPE rubber
6. Grade: N35 to N52 Neodymium magnet
7. Working Temp.: -40 to 80 degrees celsius
8. Customization: Size/Screws/Color/Logo etc.
Application of rubber coated magnet
Rubber coated magnets are mainly used within the industrial area and primarily for the oil,wind and gas industry. Other applications such as for mounting of car roof spotlight,advertising light box,loudspeaker,wedding car flower,camera,fixture on vehicles, etc. are also common. It's suitable for both indoor and outdoor applications.
Advantage of rubber coated magnet
1.Rubber coated pot magnet give great durability and high friction to keep them from slipping on surfaces.
2.Thanks to the strong rubber material these magnets are highly suitable for varnished and painted surfaces.Keep from scratching surface of car,truck,delicate surfaces etc.
3.No more drifting holes all over your lovely ride, lights can be installed.4.It can protect against the liquids, moisture,corrosion and chipping
Services avaliable
1. Dimensions: F43*31*6mm
2. Magnet hole : M4
3. Custom colors : Red, Orange, Yellow, Blue, Green, Purple, Black, White
4. Custom Logos : Protruding logo, Gravure logo, Silk screen logo
5. Product packaging : Individual PVC package

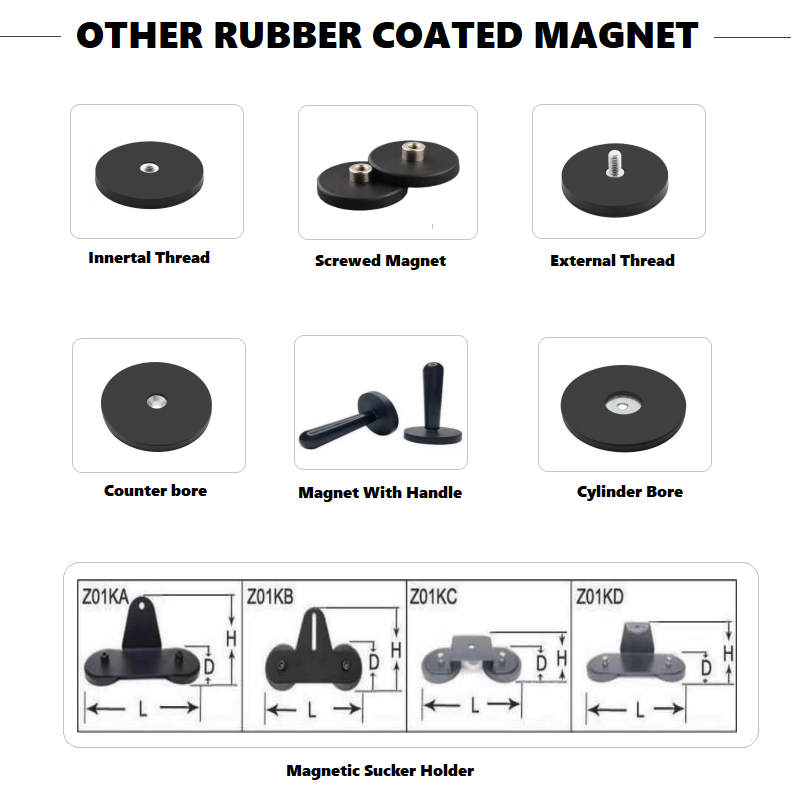

The main types of rubber coated magnets
1.Innertal Thread Rubber Coated Magnet
2.External Thread Rubber Coated Magnet
3.Cylinder Bore Rubber Coated Magnet
4.Rubber Coated Magnet With Handle
5.Magnetic Sucker Holder
6.Neodymium rubber coated magnet with counter bore
7.Neodymium rubber coated magnet with screwed
How to get a best quote?
After confirming the above four details,or if you have any futher questions,we would love to receive your email or messages.We will calcualte the price asap according to your order/sample quantity,and respond to your concerns.
