Neodymium Ring Manget
1.Dimensions: Customized / Produce according to your needs
2.Materials: NdFeB,Grade N35 to N52 (M,H,SH,UH,EH AH)
3.Plating/Coating: Nickel,Zinc,Epoxy and etc.
4.Magnetization direction: Axial,diametrical or radial magnetized and etc.
5.Max operating temp.: 80 to 220 degrees celsius

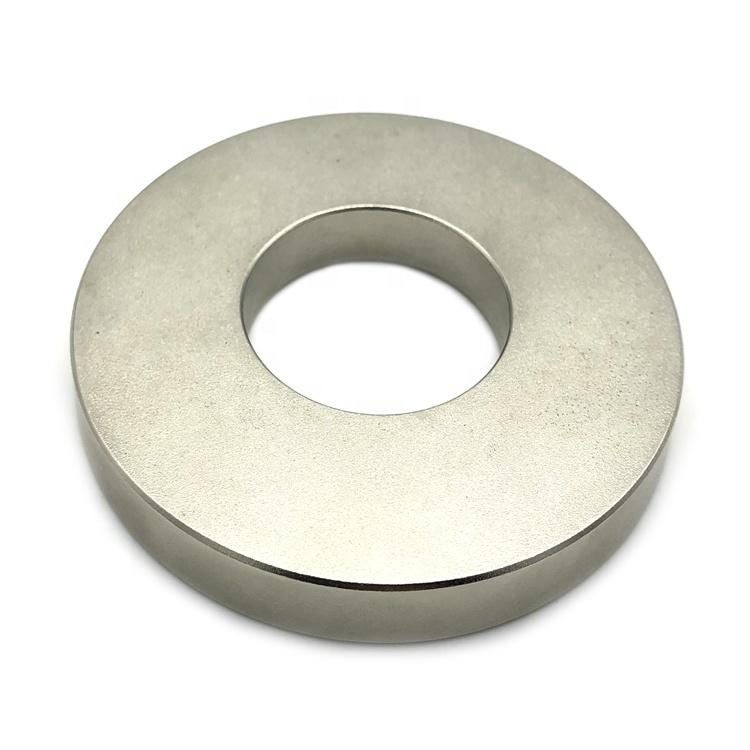

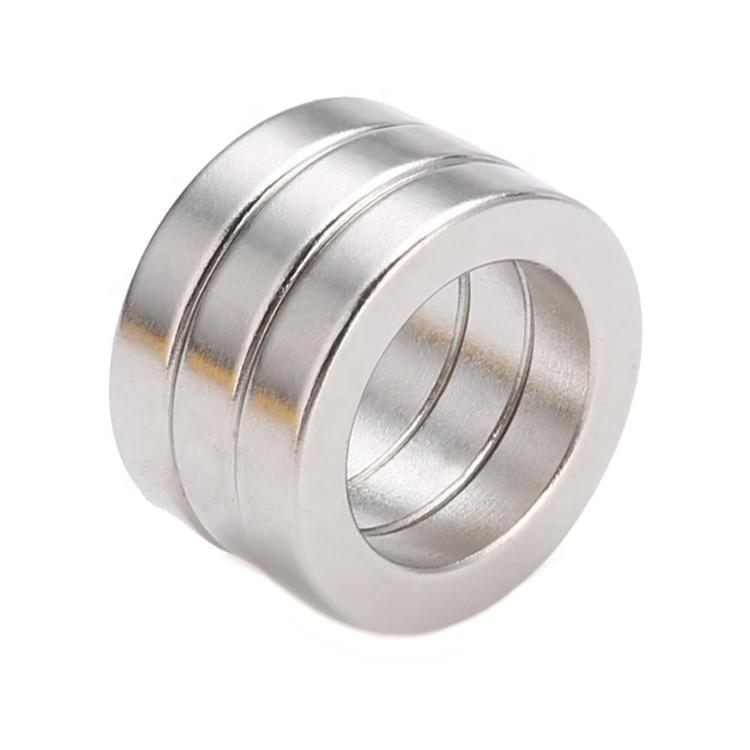

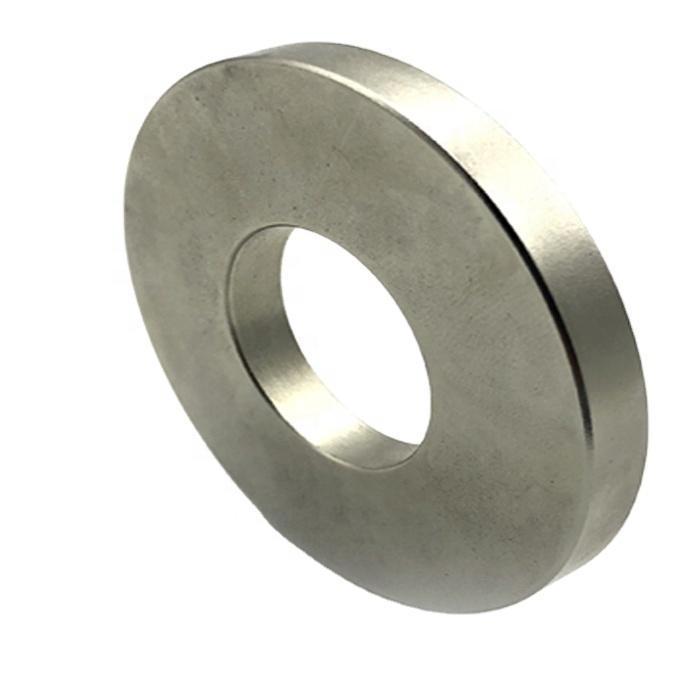

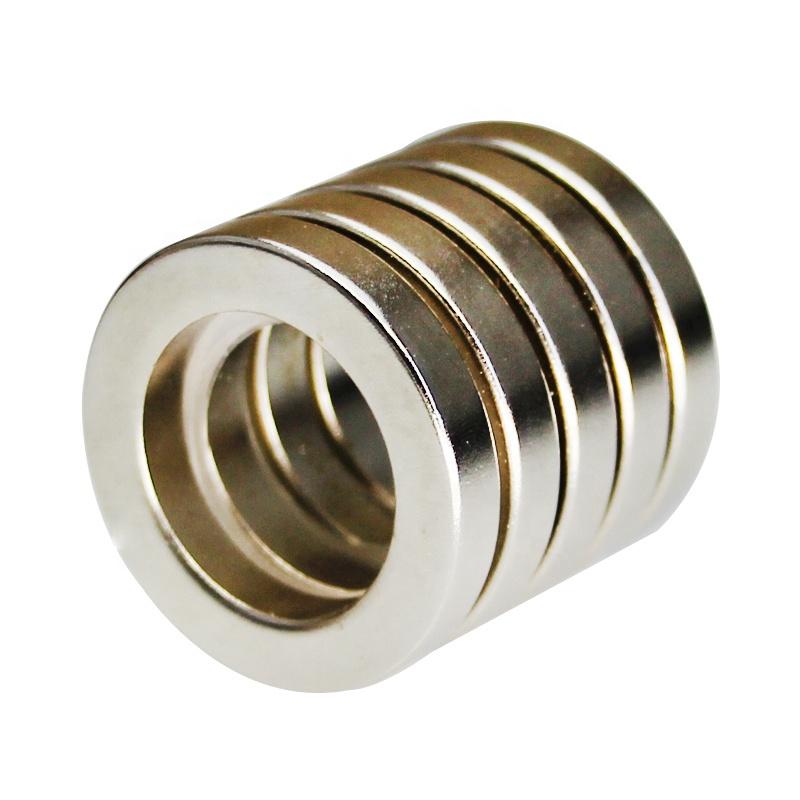

Neodymium magnet ring used for high quality loudspeakers and other industrial application.

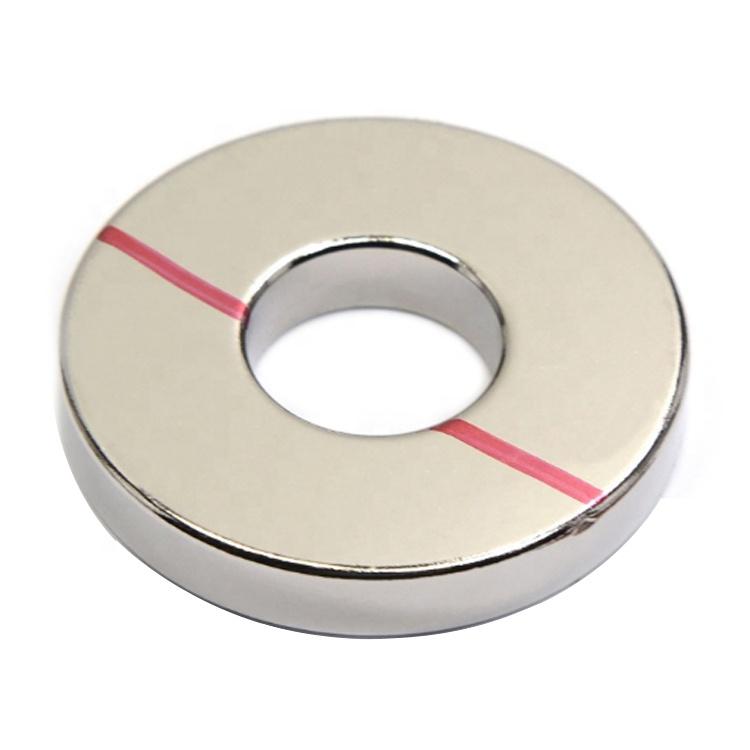

Diametrically magnetized ring magnet used for small motors.
Epoxy coated ring neodymium magnet some time be installed in the faucet to act as a filter.
| NdFeB magnet is the most powerful and advanced permanent magnet today. It has high remanence, high coercive force, high energy. |
|
|
It is easily formed into various shape and sizes, and belong to one of the most widely used magnetic materials. Especially suitable for develoment of high-performance, compact and light products. |
|
|
|
Available dimensions
We have professional team, advanced equipment and well-trained QC staff to develop different sizes and shapes magnets as customer requirements which can be ensured with very high quality and precise tolerance.
Please see below dimensions of ring neodymium magnet:
| Outer Diameter(mm) | Inner Diameter(mm) | Hight (mm) |
Tolerance or
Wall Thickness (mm)
|
Direction of Magnetization |
| 3 ≦ OD ≦ 240 | 1 ≦ ID ≦ 200 | 1 ≦ H ≦ 80 | +/-0.05 - +/-0.1 | Axial Magnetized |
| 3 ≦ OD ≦ 90 | 1 ≦ ID ≦ 70 | 1 ≦ H ≦ 80 | +/-0.05 - +/-0.1 | Diametrical Magnetized |
| 20 ≦ OD ≦ 75 | 15 ≦ ID ≦ 68 | 5 ≦ H ≦ 50 | 2 ≦ T ≦ 7 | Radial Magnetized |
