| Magnetic Square For Welding |
|
1.Logo and label can be customized For your brand marketing
2.Different angle for choice
3.Blister package with paper insert |
Application:
Ideal for ferrous metal holding for welding jobs in hardware processing and construction industry.
Features:
1.This magnet welding fixer has 30°/60°edge as well as the standard 45°and right angle (90°) edge.
2.The center hole makes it easier to handle.
3.There are two small riveted holes for linking magnets together to add extra strength to the job.
|

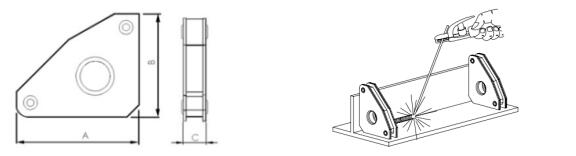

Model |
Dimension(mm) |
Angles |
Net Weight |
Pull Off Force |
||
|
A |
B |
C |
||||
|
KM4-304590S |
59 |
50 |
12 |
30°/45°/60°/90° |
0.22/pair |
15 |
|

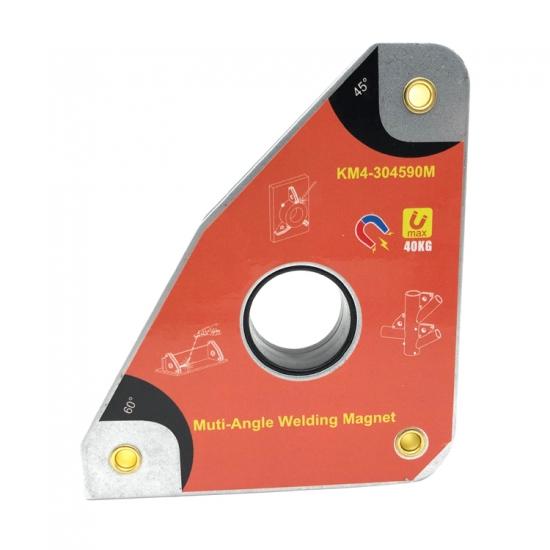

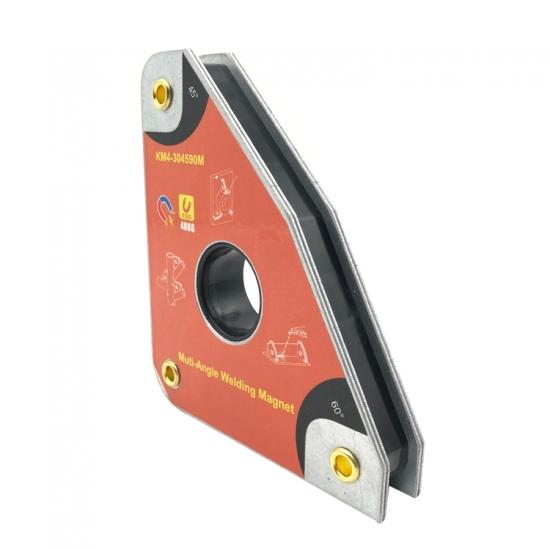

KM4-304590M |
110 |
95 |
18 |
0.46 |
40 |
|
|

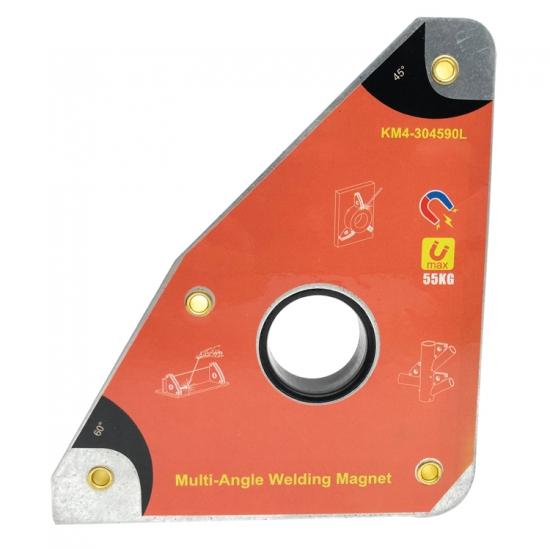

KM4-304590L |
150 |
130 |
18 |
0.78 |
55 |
|
Packing Details:
Carton Size and quantity:
38*26*23cm,50pcs/ctns for Model KM4-304590S(Blister package with paper insert,2pcs a pack)
38*26*23cm,36pcs/ctns for Model KM4-304590M(Blister package with paper insert,1pc a pack)
38*26*23cm,24pcs/ctns for Model KM4-304590L(Blister package with paper insert,1pc a pack)
For more details,you also can check our Catalog of Magnetic Welding Holder
