Features: 1. Using high-performance permanent magnetic materials, with strong magnetic force, unique circuit design, remanence almost zero.
2. High safety factor, maximal magnetic force is 3.5 times of rated lifting capacity.
3. Handle switches with safety button, easy for Single- hand operation more safety and convenience.
4. "V" style design at the bottom of lifter, can lift round steel and steel plate.
5.Without electricity, magnetic force permanent, more safety in using, and can be operated in the field.
Arc Neodymium Magnet Neodymium magnet (NdFeB), commonly known as "rare earth" magnet, is a high-performance permanent magnet made of neodymium, iron and boron alloys. They are real permanent magnets and will not lose their magnetism unless heated to a temperature exceeding the maximum operating temperature rating or their protective coating is damaged. Characteristic: -Energy products may exceed 50mgoe -Low corrosion resistance Applications: -automotive -electronics (sensors, speakers, scanners) -medical (scanners) -magnetic separators
Block Neodymium Magnet 1.Dimensions: Customized / Produce according to your needs 2.Materials: NdFeB,Grade N35 to N52 (M,H,SH,UH,EH AH) 3.Plating/Coating: Nickel,Zinc,Epoxy and etc. 4.Magnetization direction: Through thickness,width,or length 5.Max operating temp.: 80 to 220 degrees celsius It can be very small block/cube,or it can be big block/bar and become a very powerful magnet.They are often used for industrial applications.
Laminated Magnet 1. Insulation layer thickness within 0.04mm. Insulation layers: 2-40 layers. 2. At normal temperature, the bonding strength of the insulation layer can reach more than 50Mpa. 3. The maximum operating temperature is 60-250 ℃. 4. Tolerance is within 0.05mm. 5. Each magnets are insulated from each other.
Laminated Magnet 1. Insulation layer thickness within 0.04mm. 2. At normal temperature, the bonding strength of the insulation layer can reach more than 50Mpa. 3. The maximum operating temperature can reach 200 ℃. 4. Tolerance is within 0.05mm. 5. Each magnets are insulated from each other.
Laminated Magnet 1. Insulation layer thickness within 0.04mm. 2. At normal temperature, the bonding strength of the insulation layer can reach more than 50Mpa. 3. The maximum operating temperature can reach 200 ℃. 4. Tolerance is within 0.05mm. 5. Each magnets are insulated from each other.

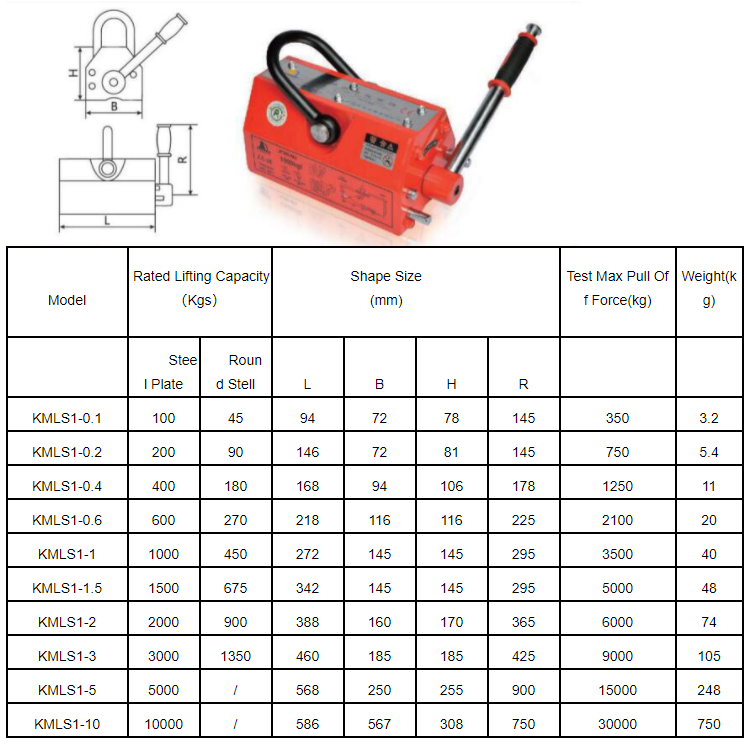

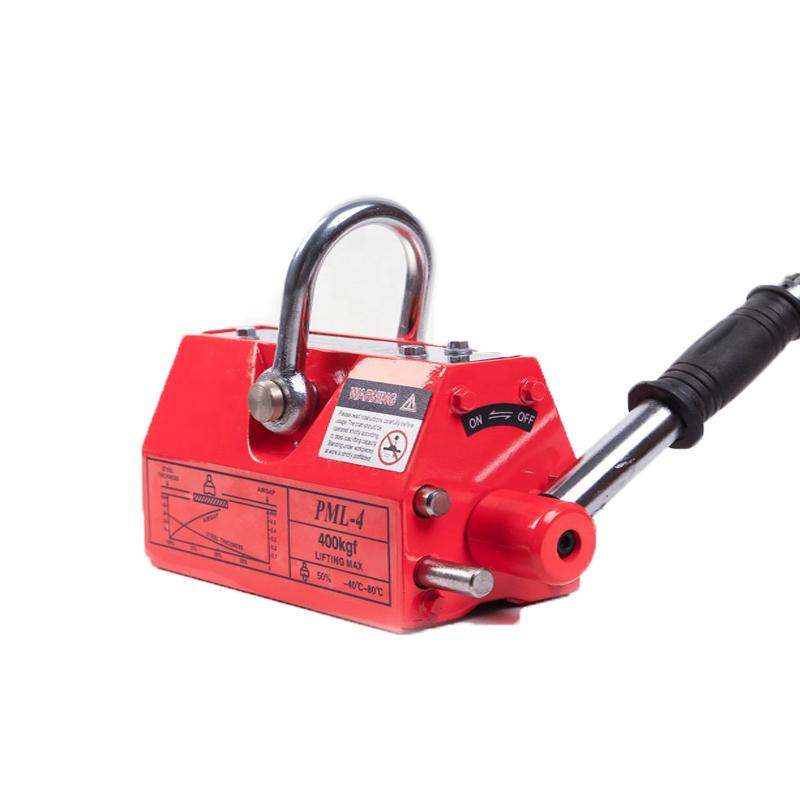

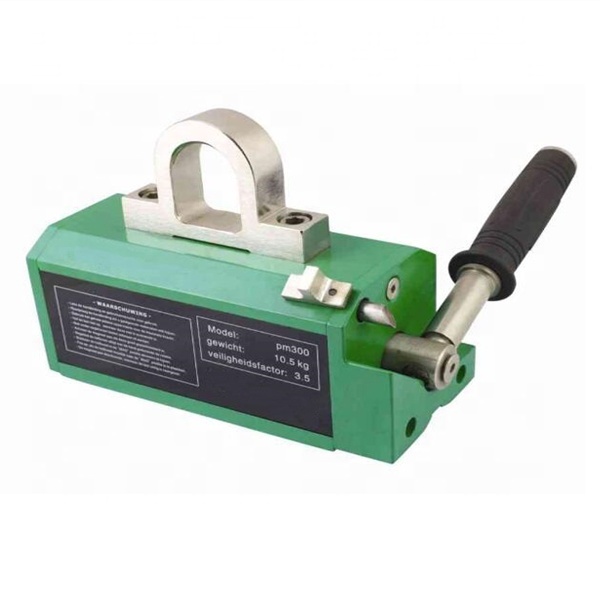

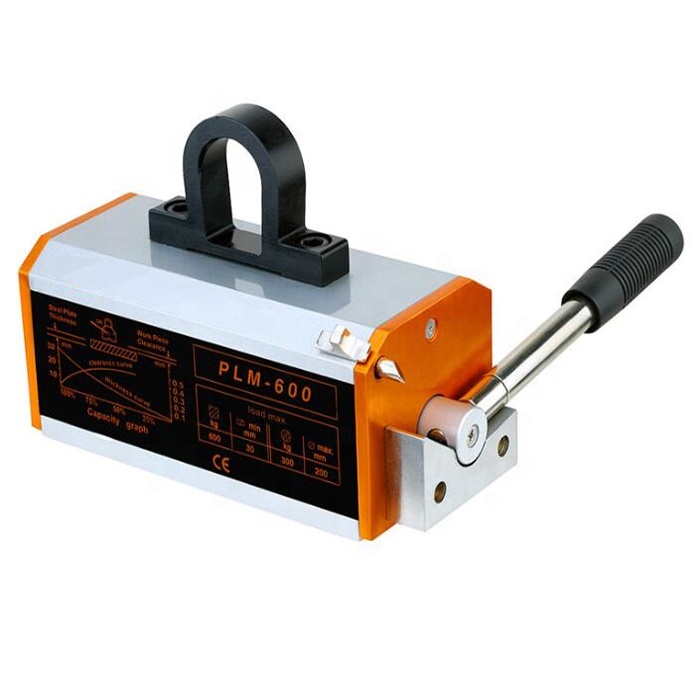

Manual lifting magnets 1.Lifting Capacity Range From 100kgs from 3000kgs 2.Automatic Permanent Magnetic Lifter for optional 3.Different color as customized
Rectangular Neodymium Magnet Neodymium magnet (NdFeB), commonly known as "rare earth" magnet, is a high-performance permanent magnet made of neodymium, iron and boron alloys. They are real permanent magnets and will not lose their magnetism unless heated to a temperature exceeding the maximum operating temperature rating or their protective coating is damaged. Characteristic: -Energy products may exceed 50mgoe -Low corrosion resistance Applications: -automotive -electronics (sensors, speakers, scanners) -medical (scanners), -magnetic separators
Size customized Coating Nickle coated ; (Ni/Zn/Epoxy black can choose) Test Salt spray test Material NdFeB Certification ISO9001/TS16949/Reach/Rosh Working temperature 80-220Degree Centigrade Use&Application Industrial applications
Strong NeFeB Magnetic Hook 1.Dimensions: Dia from 10 mm to 80 mm 2.Materials: NdFeB,Grade N42 3.Plating/Coating: Zinc,Nickel,Epoxy or Color painted. 4.Magnetization direction: Axial magnetized 5.Max operating temp.: 80 degrees celsius
Disc/Round Neodymium Magnet 1.Dimensions: Customized / Produce according to your needs 2.Materials: NdFeB,Grade N35 to N52 (M,H,SH,UH,EH AH) 3.Plating/Coating: Nickel,Zinc,Epoxy and etc. 4.Magnetization direction: Axial magnetized,Diametrical magnetized and etc. 5.Max operating temp.: 80 to 220 degrees celsius Round NdFeB magnet have a wide range of applications. Even at a very small size,it is strong enough for many tasks. Tiny size like D3x1mm,D4x2mm magnet and etc. Middle size like D6x2mm,D10x1mm manget and etc. Big size like D50x30mm magnet and etc.
Disc/Round Neodymium Magnet 1.Dimensions: Customized / Produce according to your needs 2.Materials: NdFeB,Grade N35 to N52 (M,H,SH,UH,EH AH) 3.Plating/Coating: Nickel,Zinc,Epoxy and etc. 4.Magnetization direction: Axial magnetized,Diametrical magnetized and etc. 5.Max operating temp.: 80 to 220 degrees celsius Round NdFeB magnet have a wide range of applications. Even at a very small size,it is strong enough for many tasks. Tiny size like D3x1mm,D4x2mm magnet and etc. Middle size like D6x2mm,D10x1mm manget and etc. Big size like D50x30mm magnet and etc.
1.Dimensions: According to your requirements 2.Grade: YXG26 28 30,YXG26H 28H 30H and etc. 3.Max Operating Temperature: 250 ~350 degree celsius 4.Material:SmCo5,Sm2Co17 5.Magnetized: Length,Width,Thickness and Muti-Poles 6.Advantage:High working temperature,Extremely resistant to demagnetization,Resistant to corrosion
