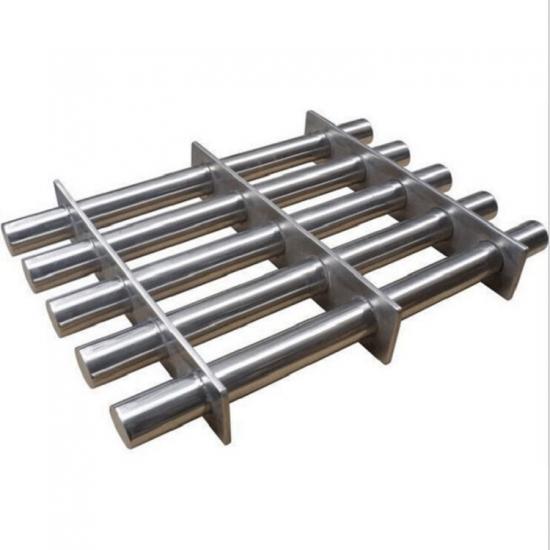

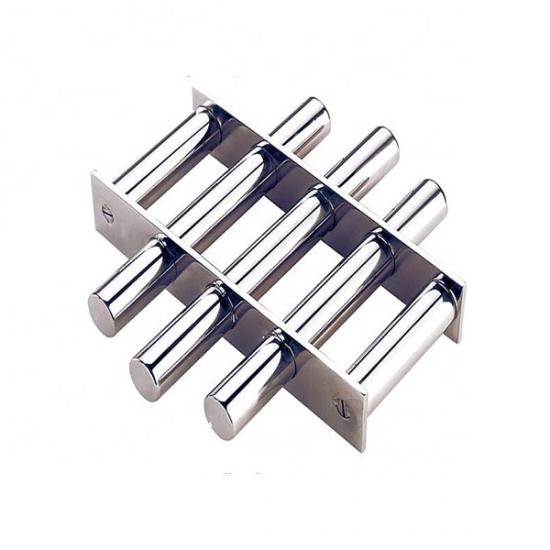

Magnetic Grate Magnet
1.Square shape series,the max magnetic strength 12000GS.
2.Types: Round, square, rectangle or any odd shape can be custom made
3.2-10bars for choice,to meet different demand
Features
1. Frame and tube material is 304 or 316L stainless steel,good corrosion resistance and no pollution.

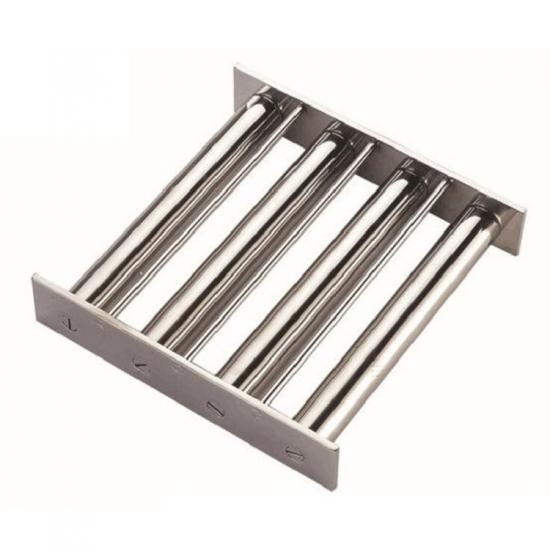

2. Standard magnetic grates are assembled with stainless steel frame and 25mm diameter round bars.
3. The frame and magnetic bar surface can be fine polished and full welded to meet food grade or pharmacy application.Standard working temperature ≦80℃, if needed,max working temperature from 80℃ to 350℃ is also avaiable.
Special design
1. Easy-clean design: This design is more expedient to do cleaning Just take out the magnetic core, the iron impurites will fall from the outer shell. As shown in
Figure 01, 02
2. Multiple layers design: The one in the picture is double layers. Of course, more layers，better filter effect. As shown in Figure 06

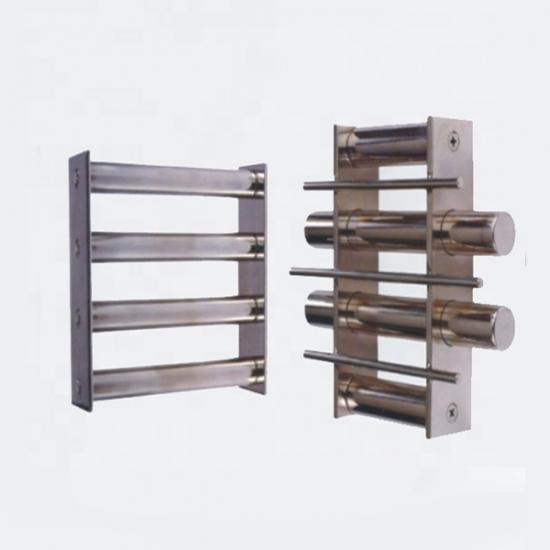

3．Add baffle to direct the material onto or close the rods when it flows down. By this way，more contaminants will be attracted.Baffle can be either small rods or 90 degree angle. As shown in Figure 03，05
4．Adding handles aims for easy operator.Especially with big size which is too heavy to handle. Another advantage of this design is to avoid contaminants dropping down when touched by hand.
Application
Magnetic Grate is installed or simply laid-inside of hoppers, housings, and bins to trap and hold ferrous fines,fragments，and small metal objects． please be aware these grates are built for low-abrasion materials.
Specification-Square Shape Series
|
MODEL NO |
Dimension（mm） |
No of bars |
||
|
L |
W |
H |
||
|
XMKM10/10 |
100 |
100 |
40 |
2 |
|
XMKM15/15 |
150 |
150 |
40 |
3 |
|
XMKM20/20 |
200 |
200 |
40 |
4 |
|
XMKM25/25 |
250 |
250 |
40 |
5 |
|
XMKM30/30 |
300 |
300 |
40 |
6 |
|
XMKM35/35 |
350 |
350 |
40 |
7 |
|
XMKM40/40 |
400 |
400 |
40 |
8 |
|
XMKM45/45 |
450 |
450 |
40 |
9 |
|
XMKM50/50 |
500 |
500 |
40 |
10 |
|
XMKM20/10 |
200 |
100 |
40 |
2 |
|
XMKM30/10 |
300 |
100 |
40 |
2 |
|
XMKM30/20 |
300 |
200 |
40 |
4 |
|
XMKM40/10 |
400 |
100 |
40 |
2 |
|
XMKM40/20 |
400 |
200 |
40 |
4 |
|
XMKM40/30 |
400 |
300 |
40 |
6 |
|
XMKM50/10 |
500 |
100 |
40 |
2 |
|
XMKM50/20 |
500 |
200 |
40 |
4 |
|
XMKM50/30 |
500 |
300 |
40 |
6 |
|
XMKM50/40
|
500
|
400
|
40
|
8 |
For more details,Please contact our specialist.
