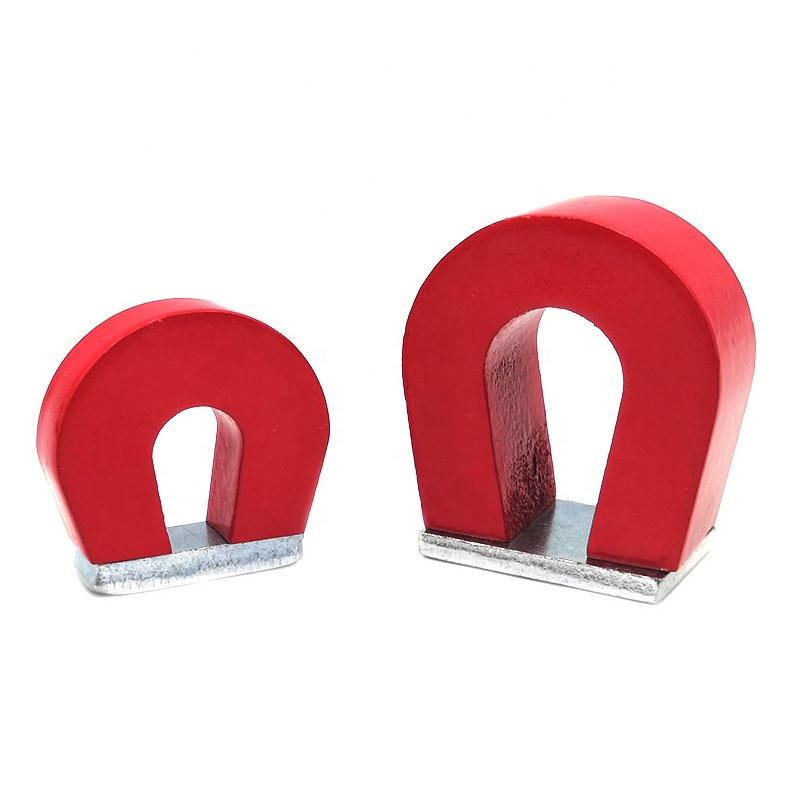

Horseshoe Alnico 5 8 Magnet Educational Magnet

1.Size: According to your requirements


2.Grade: Alnico 5 , Alinico 6, Alnico 8, Alnico 9 and etc.


3.Max Operating Temperature: 450-550 degree celsius


4.Processing technique: Sintered and Cast


5.Magnetized: Thickness,Width,Length or Multi-Poles
Product Detail

The size,shape and grade of magnet can be produce according to your request.

U Alnico 4-2 .jpg



Product details:

U (1).jpgKMA5

Part No. A B C D Pull Force
mm mm mm mm KG
KMA501 22.2 25.4 8.2 6.7 2.4
KMA502 23.1 25 6.5 6.5 1.8
KMA503 27 35 15.9 7.9 4
KMA504 41.3 39.7 15.9 9.5 6.8



U (2).jpgKMA6

Part No. A B C D E F Pull Force
mm mm mm mm mm mm KG
KMA601 28 25 8 7 14   1.2
KMA602 50 60 10 30 25 6.5 5
KMA603 56 46 25 30 28 5.5 14.8
KMA604 62 51 24 30 31 7 17
KMA605 86 70 45 54 43 9.5 35



U (3).jpgKMA7

Part No. A B C D E F Pull Force
mm mm mm mm mm mm KG
KMA701 22 17 25 8 8 7 4.5
KMA702 30 20 20 15 9 4 5
KMA703 40 25 25 20 11.5 5 9.2
KMA704 45 30 30 23 13 5 11.8
KMA705 57 35 40.5 27.8 12 2*7.9 25
KMA706 60.3 39.7 61.9 31.8 13 6.5 35
KMA707 63.5 46 47.6 34.9 16 4.8 33
KMA708 70 41.3 57.2 34.1 16 2*7.9 37
KMA709 70 34 40 44 14 2*6.5 23
KMA7010 79.4 54 82.6 38.5 18 2*9.5 50
KMA7011 79.4 54 85.7 47.6 18 null 60
KMA7012 127 98 48 70 40 2*11 60



Tolerance:  +/-0.05mm ~ +/-0.1mm

Material:  Alnico 5
Plating/Coating: Red painted
Max Operating Temp:   525 degree centigrade

Alnico Magnet 750x250mm-4.jpg

Alnico Button Magnet

Alnico Deep Pot Magnet

Alnico Shallow Pot Magnet



Alnico Magnet is composed primarily of Aluminum,Nickel,Cobalt,Copper and Iron.

It have very good corrosion resistence and high max working temperature,can reach 550deg.C.

Although other materials offer greater energy and coercivity values,the high remanence and thermal stability of Alnico makes it the most cost effective material for certain applications,like generator,microphone lifting,voltmeters and measuring instruments.

It is widely applied in high stability fields as aerospace,military,automobiles and security system.

Alnico Magnet 6.jpg

If you are in any doubt about the choice of Alnico magnet, its size or need technical assistance, please contact us for assistance.

And if you need a quotation for a standard Alnico magnet or a custom Alnico magnet shape or Alnico assembly, please contact us. Holding Magnet9

Alnico Rod Magnet



Alnico Bar Magnet


Alnico Ring Magnet

Alnico Holding Magnet



packing workshop

7

1.White inner box.

2.Suitable carton size.

3.Anti-magnetized packaging.

4.We will suggest the best solution of shipment for your  reference according to order quantityes.
