Plate Magnet Different kinds of plate for customization:
1.Flat Face Plate Magnets
2.Exposed Pole (EP) Plate Magnets
3.Spout Magnet
4.Suspended Plate Magnet
Plate magnet Designed to be installed either chute or in the conveying process.They are most displayed at the terminal of conveyor, suspension above the conveyor belt. The strong magnetic field will attract and hold the iron tramps when material pass through.The plate magnet construction by inside magnet and out side stainless steel (304 or 316L).We can provide various type of plate magnet,mostly of Flat face,Exposed Pole,Spout magnet,Suspended plate magnet.
1. Flat Face(FF)
Flat Face Plate Magnets have ideal metal separation performance when assembled over the flow chute or belt applications with low-density product flows. Downstream processing facilities will be under continuous magnetic protection because plate magnets can lift ferrous tramps out of the product flow stream.
Specification
|
Item NO. |
Dimension(mm) |
Weight(kg/100MM |
||
|
B |
D |
T |
||
|
KMFPM-FF60 |
250 |
175 |
51 |
5.7 |
|
KMFPM-FF120 |
300 |
225 |
76 |
10.4 |
|
KMFPM-FF150 |
450 |
360 |
111 |
19.1 |
|
KMNPM-FF60 |
190 |
125 |
36 |
3.7 |
|
KMNPM-FF120 |
250 |
175 |
46 |
5.9 |
|
KMNPM-FF150 |
330 |
240 |
56 |
10.3 |
Note:L can be decided by customer
2. Exposed Pole(EP)
Exposed Pole (EP) Plate Magnets are designed for removing tramp metals from the low volume materials flow. They will be installed below the materials flow in the process line.Widely use to capture ferrous contaminants from relative lower flowing material.
Specification
|
Item NO. |
Dimension(mm) |
Magnets Action Range |
Weight(kg)/100MM |
||
|
B |
D |
T |
|||
|
KMFPM-EP60 |
250 |
175 |
51 |
60 |
5.7 |
|
KMFPM-EP120 |
300 |
225 |
76 |
120 |
10.4 |
|
KMFPM-EP150 |
450 |
360 |
111 |
150 |
19.1 |
|
KMNPM-EP60 |
190 |
125 |
36 |
60 |
3.7 |
|
KMNPM-EP120 |
250 |
175 |
46 |
120 |
5.9 |
|
KMNPM-EP150 |
330 |
240 |
56 |
150 |
10.3 |
3. Spout Magnet(SM)
Spouts Plate magnets are designed to remove ferrous tramp metal from high volume material flow or rapid material flow. Properly designing can prevent wash-off of ferrous tramps and fines.
Specification
|
Item NO. |
Dimension(mm) |
Magnets Action Range |
Weight(kg)/100MM |
||
|
B |
D |
T |
|||
|
KMFPM-SM60 |
250 |
175 |
51 |
60 |
5.7 |
|
KMFPM-SM120 |
300 |
225 |
76 |
120 |
10.4 |
|
KMFPM-SM150 |
450 |
360 |
111 |
150 |
19.1 |
|
KMNPM-SM60 |
190 |
125 |
36 |
60 |
3.7 |
|
KMNPM-SM120 |
250 |
175 |
46 |
120 |
5.9 |
|
KMNPM-SM150 |
330 |
240 |
56 |
150 |
10.3 |

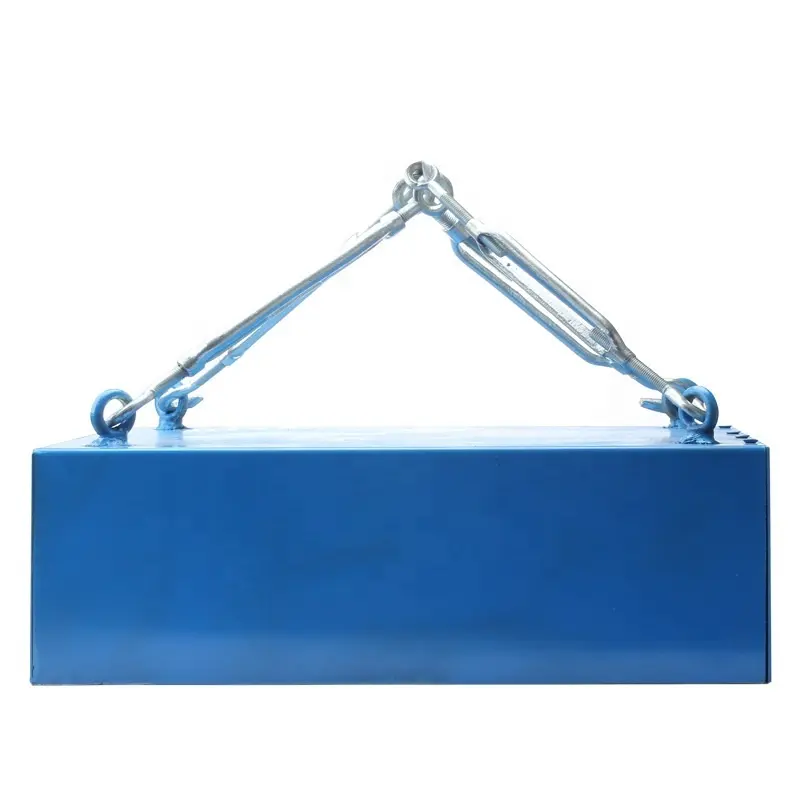

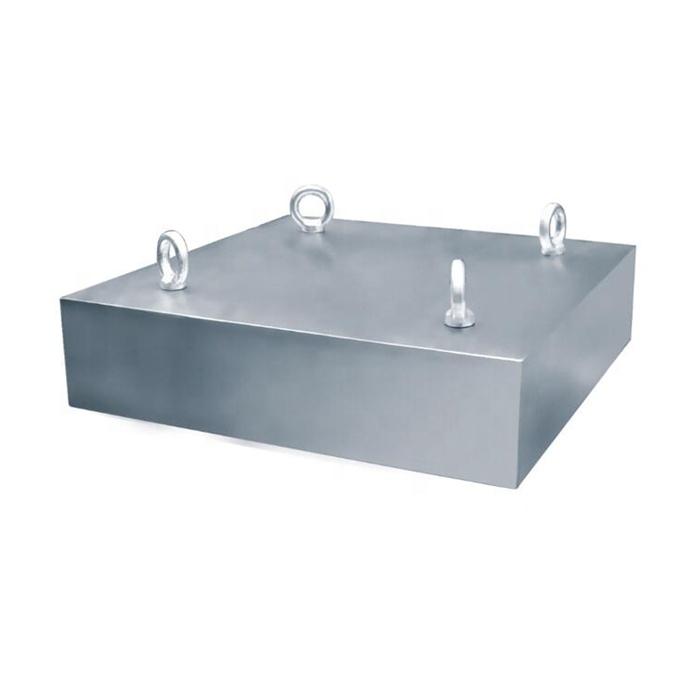

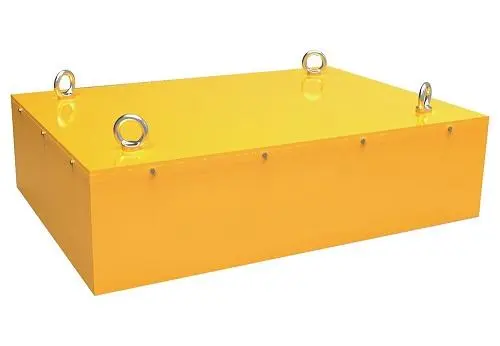

4. Suspended Plate Magnet(SPM)

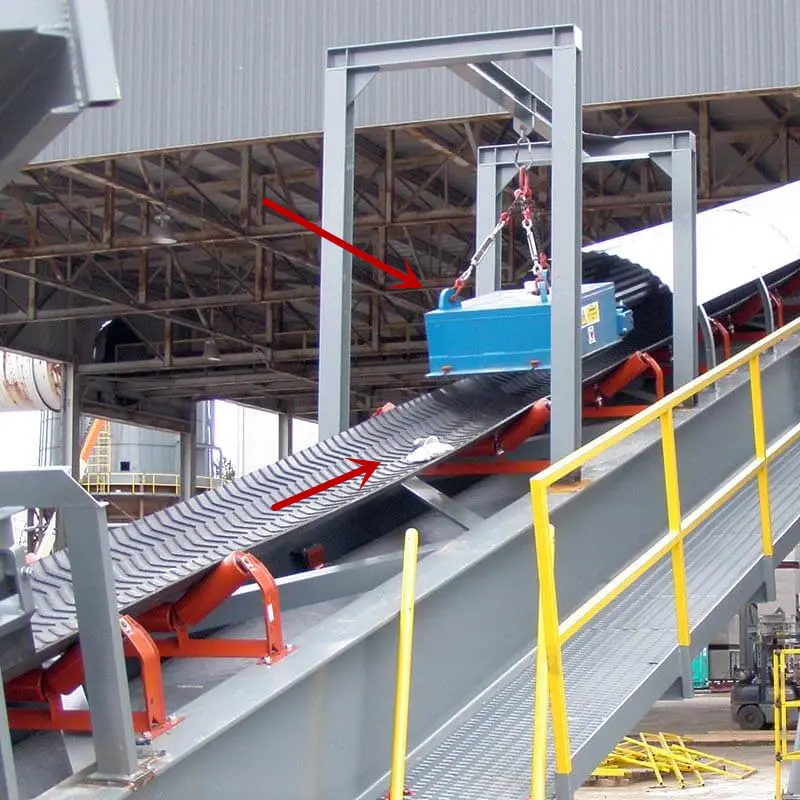

Suspended plate Magnets are designed for effective tramp metals extraction from the high volume material by Installation above Conveyors Using big size ferrite and properly designed configuration ensure the tramp iron can be taken from thick layer material flow by heavy duty plate. For fine metal powders in thin layer material flow, light duty plate made of rare earth magnet is available also. Supplied with deep mounting tapped holes in the back of pate or four eye bolts, these plate magnets can be rigidly mounted with threaded bolts or suspended by eye bolts using cable or chain systems.
Specification
|
Item NO. |
Dimension(mm) |
Magnets Action Range |
Weight(kg) |
||
|
H |
A |
B |
|||
|
KMPM-SPM18 |
180 |
400 |
400 |
180 |
123 |
|
500 |
500 |
129 |
|||
|
KMPM-SPM25 |
250 |
600 |
600 |
200 |
380 |
|
700 |
700 |
517 |
|||
|
KMPM-SPM35 |
350 |
800 |
800 |
220 |
1064 |
|
900 |
900 |
1346 |
|||
|
KMPM-SPM36 |
400 |
1000 |
1000 |
240 |
1851 |
|
1100 |
1100 |
2240 |
|||
|
1200 |
1200 |
2667 |
|||
