Custom Neo Motors Magnets N35SH Arc Magnet

Custom Neo Motors Magnets N35SH Arc Magnet

N35SH Arc motor Magnet
Arc Neodymium Magnet


Neodymium Magnet (NdFeB), Commonly Known As "Rare Earth" Magnet, Is A High-Performance Permanent Magnet Made Of Neodymium, Iron And Boron Alloys.
They Are Real Permanent Magnets And Will Not Lose Their Magnetism Unless Heated To A Temperature Exceeding The Maximum Operating Temperature Rating Or Their Protective Coating Is Damaged.




Characteristic:
-Energy Products May Exceed 50mgoe
-Low Corrosion Resistance

Applications:

-Automotive

-Electronics (Sensors, Speakers, Scanners)

-Medical (Scanners)

-Magnetic Separators
inquiry Form
Product Detail

Customized N52 High Quality Permanent Neodymium Magnet Arc Magnets Use For Motors

(4) (6) (2)81 (2).jpg



 Typical product Specification

Customized N52 High Quality Permanent Neodymium Magnet Arc Magnets Use For Motors

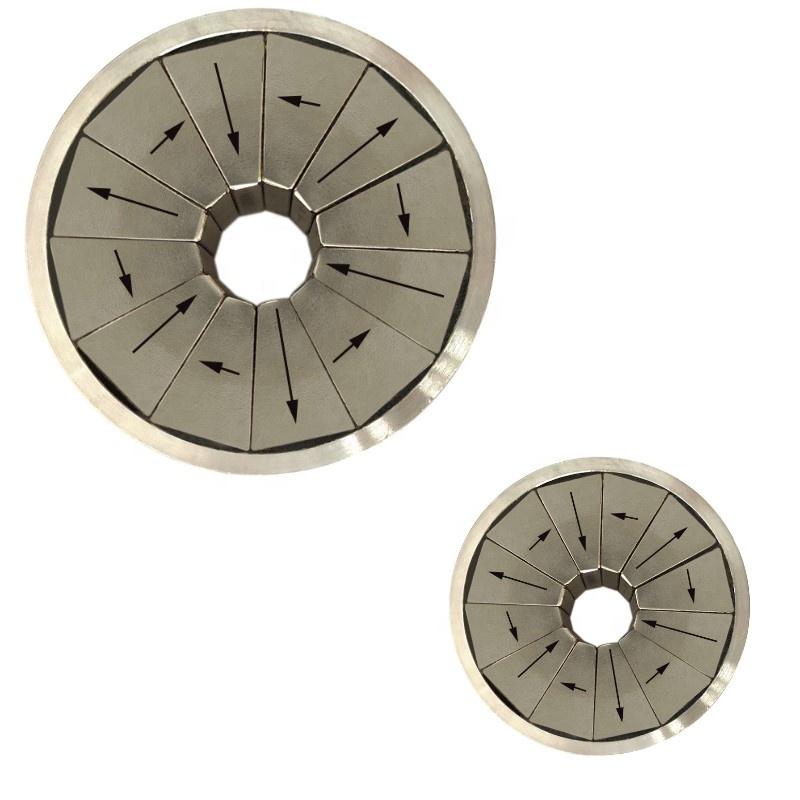

The direction of magnetization

Arc magnetized.png

When quoting, we not only need to know all the parameter information on the above drawing and the direction of magnetization, but also need to know the Angle of the tile, which is very important.


Packing Details

Normally we use carton box and anti-magnetic packing, we also need to use spacer to separate  the magnets from each other to prevent customer from being hurt when  take it out amd need protective box or antimagnetic shield packed in cartons for air/sea delivery.

Customized N52 High Quality Permanent Neodymium Magnet Arc Magnets Use For Motors


Customized N52 High Quality Permanent Neodymium Magnet Arc Magnets Use For Motors
